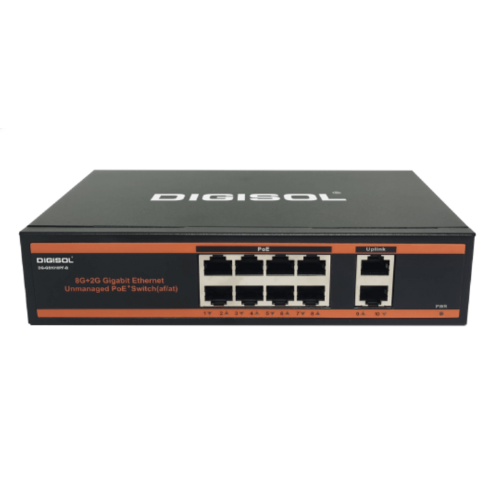

DIGISOL DG-GS1010PF-B 8-Port PoE Gigabit Unmanaged Switch with 2 Uplink Ports
DIGISOL DG-GS1010PF-B 8-Port PoE Gigabit Unmanaged Switch with 2 Uplink Ports
Regular price
Rs. 6,514.00
Regular price
Rs. 9,200.00
Sale price
Rs. 6,514.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
DIGISOL 8 Port Giga Eth Unmanaged PoE + 2*1GE uplink Switch with 6KV surge protection- 150 poe watt
| Ports Configuration | Network Ports: 10 |
| PoE Port: 8 × 1000Mbps, Max. 30W | |
| Output of Single PoE Port | |
| Transmission distance: 0~100m | |
| Power Indicators: | |
| - Light on: Powering | |
| - Light off: No Power | |
| VLAN Indicator: | |
| - Green light on: VLAN mode | |
| - Light off: Normal mode | |
| Port 1-10 Indicator: | |
| - Light off: Link is disconnected | |
| - Red light on: Powering but data disconnected | |
| - Light flash quickly: Data Transmitting | |
| Standard | Network Protocol: IEEE802.3i/802.3u/802.3x/802.3af/802.3ab |
| Performance | Switching Capacity: 20Gbps |
| Full duplex | |
| Packet Forwarding Rate: 14.88Mpps/port | |
| Packet Buffer Memory: 1Mbits | |
| Forwarding Mode: Store-and-forward | |
| MAC Address Table: 2K | |
| Supports VLAN Mode | |
| Transmission distance: 1 | |
| 8 Port: 1000Mbps | |
| 0 |
|
| Power Over Ethernet | PoE Standard: IEEE802.3af, IEEE802.3at |
| PoE Power Supply: 1/2(+),3/6(-) | |
| Transmission Distance: 0~250m/10Mbps, 0~100m/100Mbps | |
| PoE Feature: All ports support MDI/MDIX | |
| General | Power Source: Built-in Power Supply |
| Input: 110-264V AC, 50/60Hz | |
| PoE Power Budget: 150W | |
| Power Consumption: <5W | |
| ESD: Air discharge: 15KV | |
| Contact discharge: 15KV | |
| Anti-Thunder Level: Common mode: 2KV | |
| Differential mode: 2KV | |
| Operating Temperature: 0 to 55°C | |
| Humidity: 20%~95%, non-condensing | |
| Storage Temperature: -20 to 70°C | |
| Weight: 1.05Kg |
