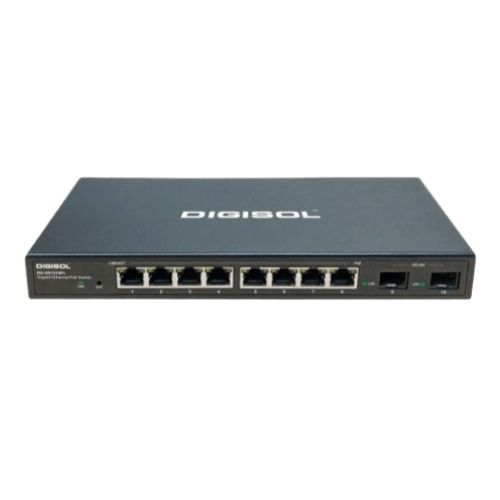

DIGISOL DG-GS1510PL 8-Port Gigabit PoE Smart Managed Switch with 2 Giga SFP Ports

DG-GS1510PL

The Digisol DG-GS1510PL is an Ethernet access switch designed for LAN networks, offering Power over Ethernet (PoE) functionality to power devices such as wireless access points, IP security cameras, VoIP phones, and other low-density installations. Compact and versatile, it can be wall-mounted in small spaces. The switch features 8 10/100/1000Base-TX ports and 2 1000Base-X SFP ports for enhanced connectivity.

• Fixed port8 10/100/1000Base-TX ports 2 1000Base-X SFP ports
• LED Indicators PWR, PoE, 1000M and Link/Act LED
• Input voltage 100V~240V AC, 50/60Hz
• PoE Power : 75W
• Operating temperature : 0°C~40°C
• Storage temperature : -10°C~70°C
• Relative humidity 20%~85% (non-condensing)

• Spanning Tree IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Ring Protocol Support EAPS
• Support Broadcast Storm Filter
• Multicast Support 256 Multicast groups Support IGMP Snooping

Layer 2 Switching

• Switching capacity : 20G
• MAC address table 8K, Support MAC address table management
• MAC Address Binding Support
• MAC Address Filtering Support
• MAC Address Learning control Control number of port-based MAC address learning
• Jumbo Frame Jumbo packets up to 10K bytes
