Molex

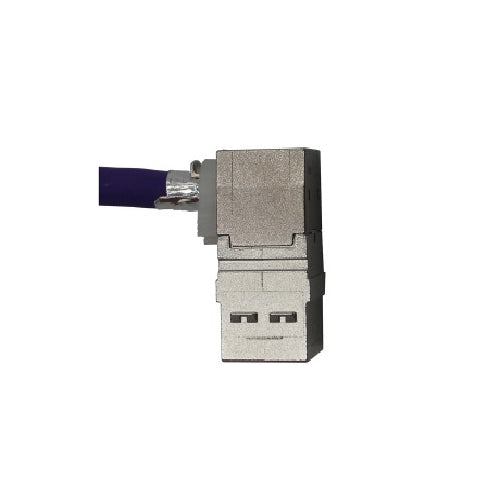

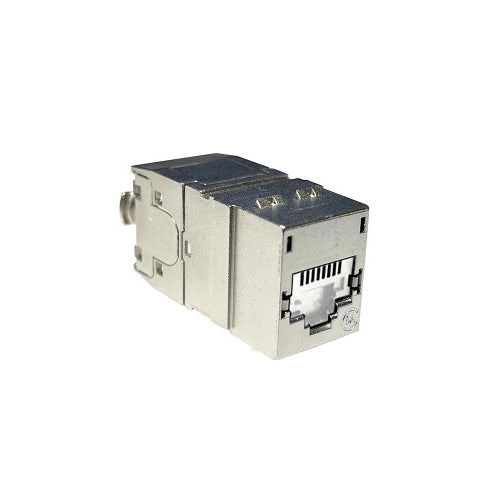

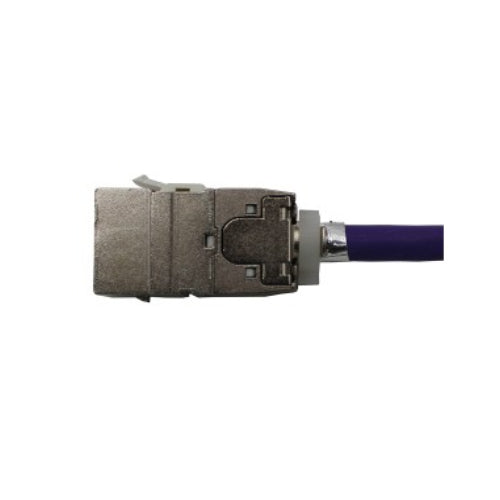

Molex KSJ-00096-02 CAT 6A I/O White

Molex KSJ-00096-02 CAT 6A I/O White

Rs. 503.15
Rs. 1,006.30 Rs. 503.15
Sale Sold out
Tax included. Shipping calculated at checkout.
Features:
  • Robust die cast zinc alloy housing
  • 360°Shielded
  • Accommodates flexible cable routing by allowing 90 ° or 180 ° cable entry
  • Dual Color coding allows 568A/B wiring
  • Patented IDC (insulation displacement contact) V-shaped contacts that flex not fatigue when terminated
  • Spring-Loaded Shutter
  • Accepts color coded port identification labels
  • Category 6A performance when installed as a complete PowerCat Shielded System
  • Spring loaded cable/drain wire clamp
  • Cable can be terminated in 3 directions – Straight, on left or right side of jack
  • Complies with ISO/IEC 11801 and TIA Cat 6A channel and PL requirements
  • Jack can be terminated with 4 Pair Termination Tool or standard IDC Punch Down Tool
  • RoHS Compliant
  • Molex DataGate jacks may accommodate both solid (AWG22 to AWG24) and stranded (AWG26) cables
