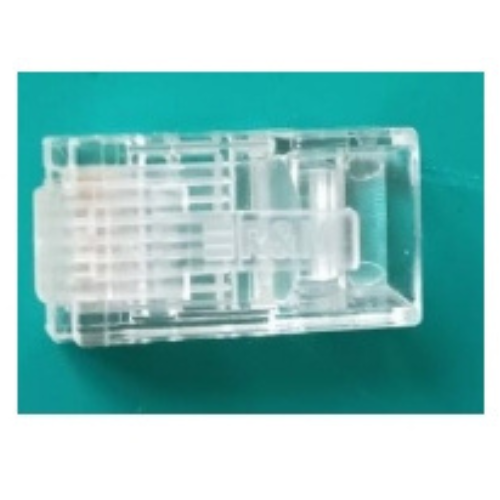

R&M R197005 RJ45 Standard Connector UTP ( Pack of 10 )
R&M R197005 RJ45 Standard Connector UTP ( Pack of 10 )
Regular price
Rs. 1,327.00
Regular price
Sale price
Rs. 1,327.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features :
UTP RJ45 modular connector is designed to terminate wire cat6 network
cable the connector contains two metal teeth that hold the wire in place
giving a reliable connection. TIA/EIA T568A or T568B.
|
Category |
Cat6/UTP |
|
Plug type twisted pair |
RJ45 |
|
Number of wires |
8 |
|
Wiring diagram |
T568A and T568B |
|
Wire type Unshielded |
Solid/Stranded |
|
Cable exit |
Straight |
|
Color |
Plug/cover: transparent |
|
Contact Material |
Phosphors bronze |
|
Mating Cycles |
> 750 |
|
Contact plating |
1.27µm |
|
Material |
Polycarbonate |
|
Nominal Current |
0.75A |
|
Operation temperature |
-20 °C to +70 °C |
|
Conductor |
26-23 Awg |
|
Insulation Resistances, minimum |
500 m0hm |
|
Package Quantity/cover |
100 |
