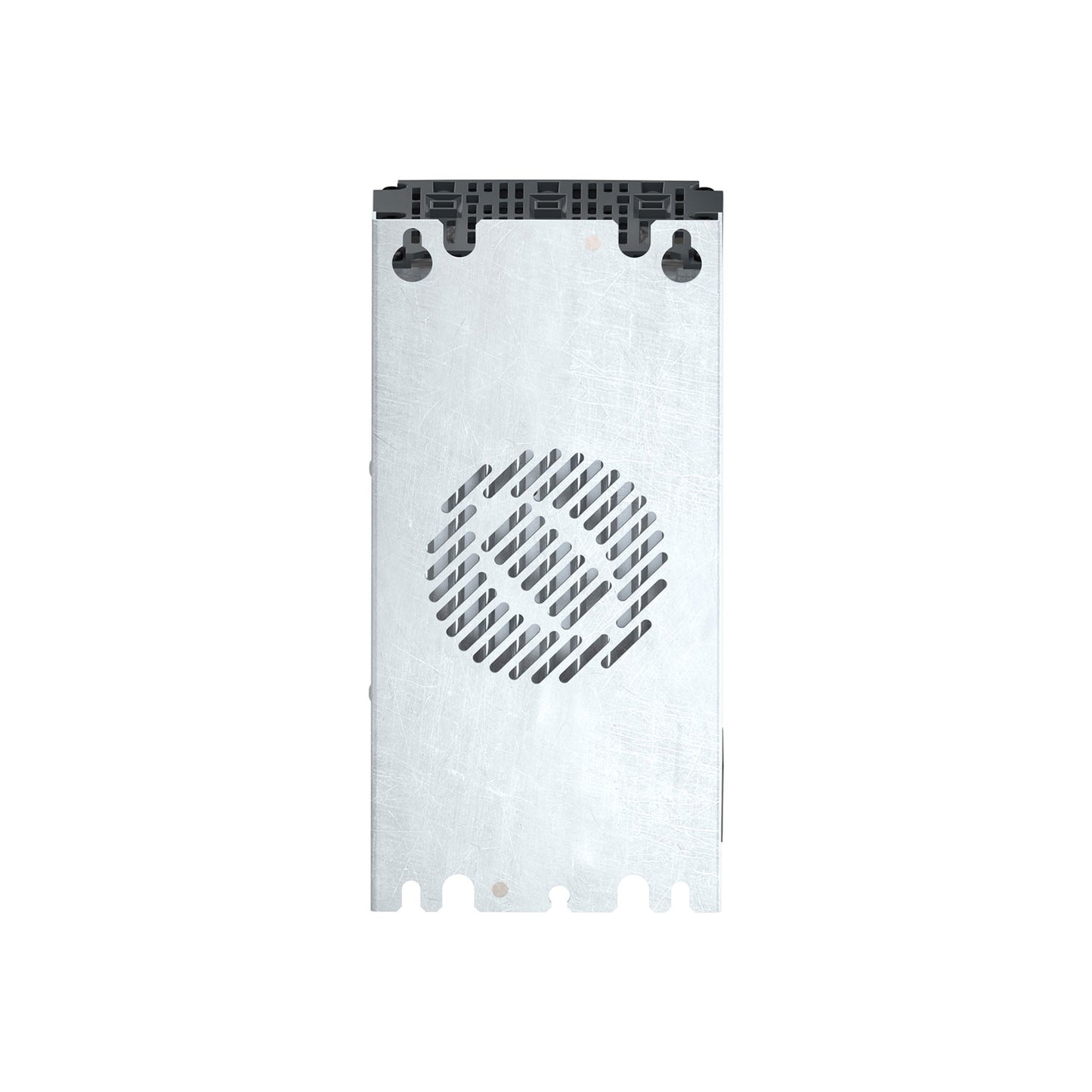

Schneider ATS22D47S6U soft starter for asynchronous motor, Altistart 22, control 110V, 230 to 575V, 15 to 40hp

Schneider ATS22D47S6U. Datasheet

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 47A, a rated power from 15HP to 40HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

• Provide smooth starting, avoiding mechanical stresses and extending their service life
• Reduce hearing discomfort for operators on the workfloor
• Slim form factor improves versatility
• Less cost to stock spares
• Overcome difficult or high-torque starts

Specifications

Range of Product : Altistart 22

Product or Component Type : Soft starter

Product destination : Asynchronous motors

Product Specific Application : Pumps and fans

component name : ATS22

Phase : 3 phase

rated supply voltage : 208...600 V - 15...10 %

Maximum Horse Power Rating : 15 hp 230 V
30 hp 460 V
40 hp 575 V

Factory setting current : 40 A

Power dissipation in W : 48 W for standard applications

utilisation category : AC-53A

Type of start : Start with torque control (current limited to 3.5 In)

IcL starter rating : 47 A connection in the motor supply line for standard applications

IP Degree of Protection : IP20

Assembly style : With heat sink

Function Available : Internal bypass

Supply voltage limits : 177…660 V

device connection : In the motor supply line

Physical interface : RS485 multidrop

Installed device : 31

Relative humidity : 0…95 % without condensation or dripping water EN/IEC 60068-2-3
