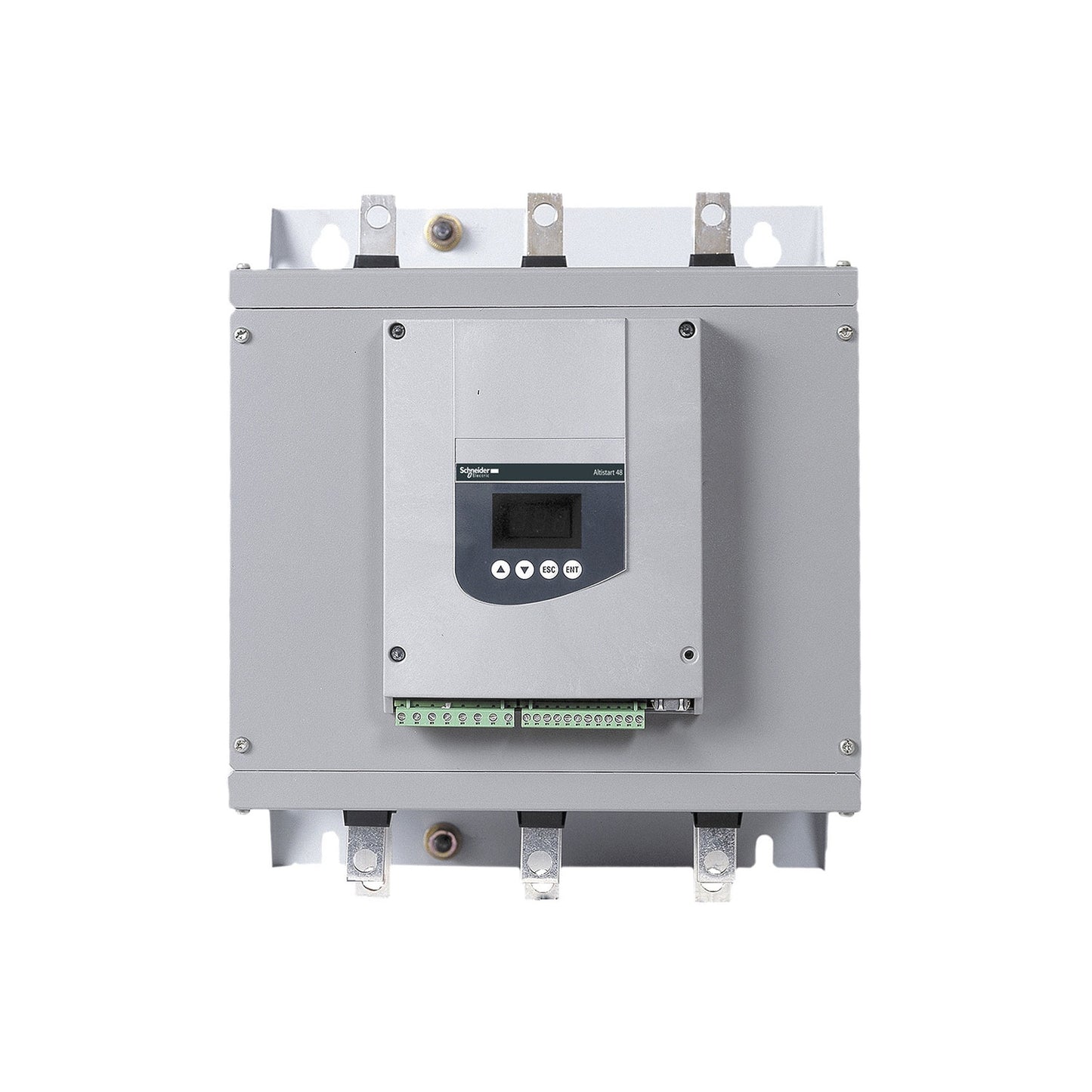

Schneider ATS48C21Y soft starter for asynchronous motor, Altistart 48, 180A, 208..690V, 45..200kW

Schneider ATS48C21Y Datasheet

• Thermal protection of the motor
• Factory set for immediate startup
• Reduce machine operating costs
• Bypass contactor prevents heat dissipation
• Dual configuration

Specifications:

Range of Product : Altistart 48

Product or Component Type : Soft starter

Product destination : Asynchronous motors

Product Specific Application : Heavy duty industry and pumps

Device short name : ATS48

utilisation category : AC-53A

Ue power supply voltage : 208...690 V - 15...10 %

power supply frequency : 50...60 Hz - 5...5 %

device connection : In the motor supply line

Protection type : Phase failure line
Thermal protection motor
Thermal protection starter

Standards : EN/IEC 60947-4-2

Discrete input number : 5

Discrete input type : PTC, 750 Ohm 77 °F (25 °C)
Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm

Discrete input logic : Positive logic Stop, Run, LI3, LI4 < 5 V <= 2 mA > 11 V, >= 5 mA

Minimum switching current : 10 mA 6 V DC relay outputs

Discrete output number : 2

Analogue output type : Current output AO 0-20 mA or 4-20 mA 500 Ohm

communication port protocol : Modbus

Connector Type : 1 RJ45

Physical interface : RS485 multidrop
