Schneider BMXP342020 processor module M340 - max 1024 discrete + 256 analog I/O - Modbus - Ethernet

Schneider BMXP342020 Datasheet

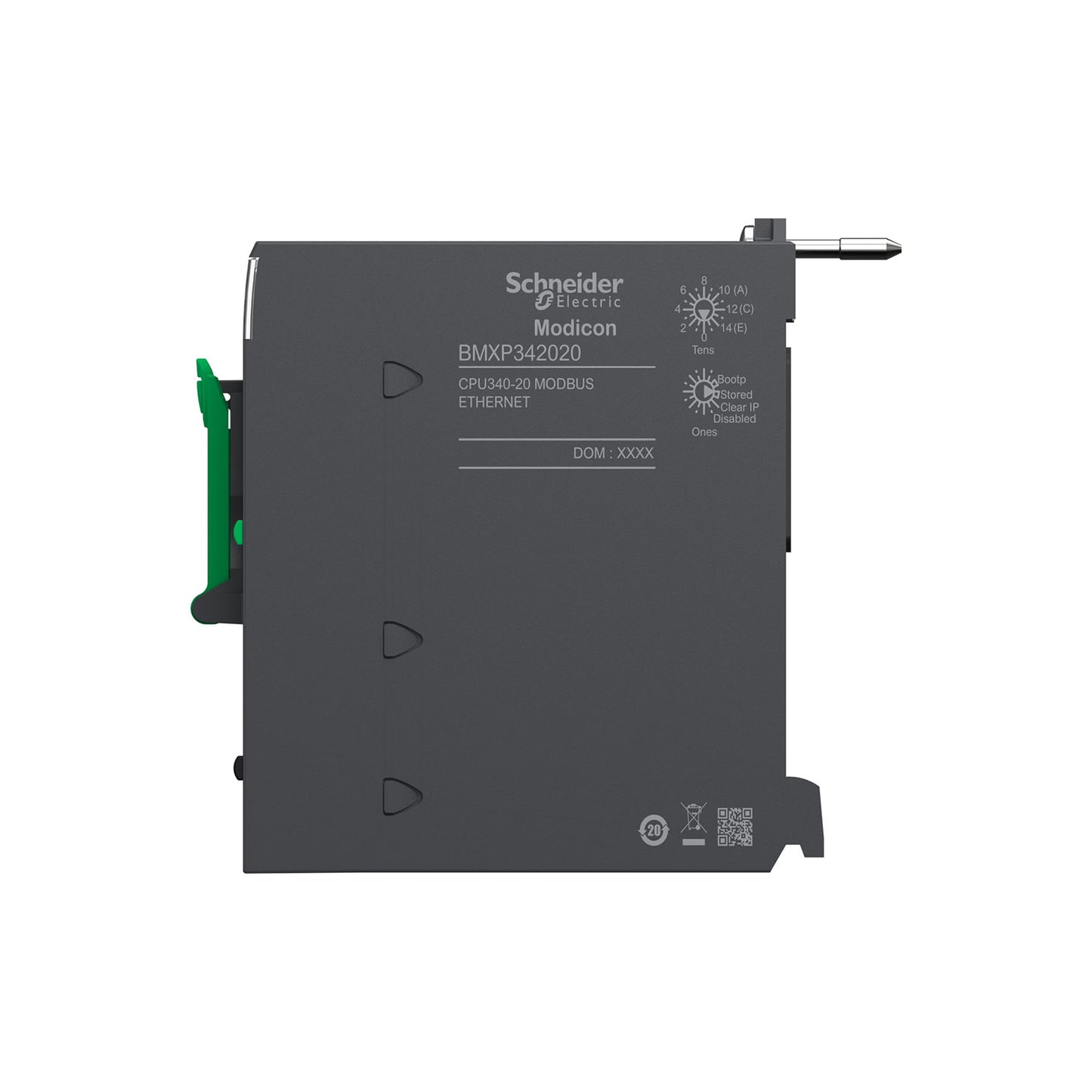

This performance processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It enables 4 racks maximum, 1024 I/O and its memory capacity is equal to 4096 KB. It has on its front panel a safety screw for locking the module in its slot, a display block comprising 8 LEDs, a mini B USB connector for a programming terminal, a slot equipped with its flash memory card. It also has a RJ45 connector for connection to the Ethernet Modbus/TCP network and an RJ45 connector for the Modbus serial link or character mode link (RS 232C/RS 485, 2-wire

Specifications :

range of product : Modicon M340 automation platform

Product or component type : Processor module

Concept : Transparent Ready
CANopen

Number of racks : 4

Number of slots : 11

Discrete I/O processor capacity : 1024 I/O multi-rack configuration
704 I/O single-rack configuration

Analogue I/O processor capacity : 256 I/O multi-rack configuration
66 I/O single-rack configuration

Number of application specific channel : 36

Monitoring : Diagnostic counters Modbus
Event counters Modbus

Communication module processor capacity : 2 Ethernet communication module
4 AS-Interface module

Port Ethernet : 10BASE-T/100BASE-TX

Number of devices per segment : 0…32 (character mode)
0…32 (Modbus)

Number of devices : 2 point-to-point character mode
2 point-to-point Modbus

Number of addresses : 0…248 for character mode
0…248 for Modbus

Maximum size of object areas : 256 kB unlocated internal data
32634 %Mi located internal bits

System overhead : 0.13 ms for fast task
0.7 ms for master task

Current consumption : 95 mA at 24 V DC

supply : Internal power supply via rack
