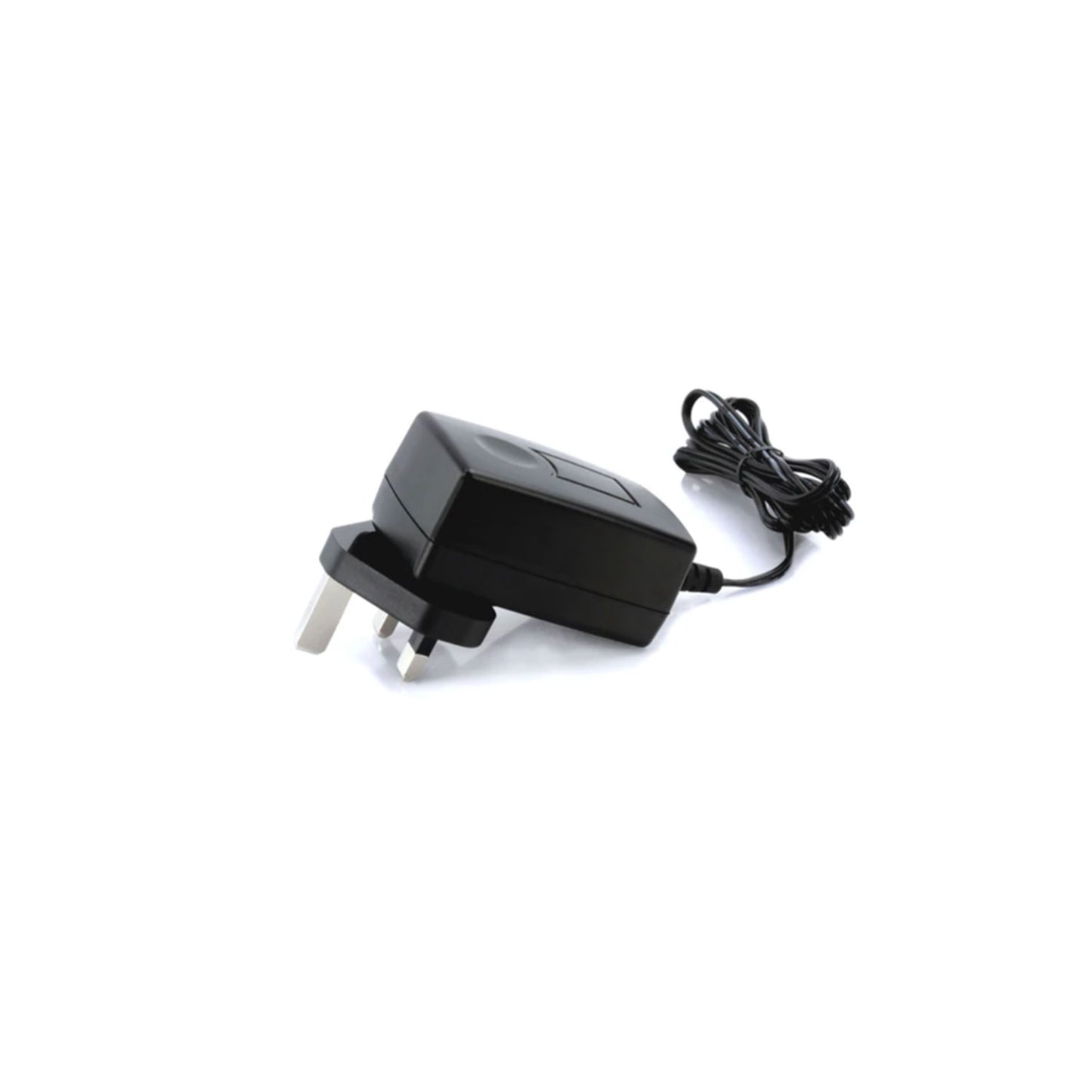

Veracity VPSU-12V-U 12V Universal PSU POWER SUPPLY

VPSU-12V-U Datasheet

12V DC power supply with 1A output (12W) for powering non-POE devices

Compact, simple and reliable standard plug-top unit

Provided with multi-country plug adaptors and 100-240V and 50/60Hz compatibility for universal application

SPECIFICATION

POWER INPUT

Normal Input Voltage : 100 - 240V AC

Input Frequency (rated) : 50/60Hz

Current (rated) : 0.5A at full load

POWER OUTPUT

Normal Output Voltage : 12V DC

Maximum Output Current : 1.0A

Protection : Over-current, over-voltage and short-circuit protection

Efficiency : > 80%, Level VI

PHYSICAL/ENVIRONMENTAL

Product Case Dimensions : L 49mm W 49mm H 69mm

Weight : 130g, 4.59oz

Operating Temperature : 0º ~ +40ºC, [32ºF~ +104ºF], Full Load and natural convection

Storage Temperature : 10º ~ +70ºC, [14ºF~ +158ºF]

Operating/Storage Humidity : 10 ~ 90% RH (non-cond) / 5 ~ 90% RH (non-cond)

Compliance : EN60950, EN55022B, CE, ROHS, FCC, UL, UKCA, PSE

Format : Plug-top power supply with UK, EU and US plug-in connectors

Output Cable : 1.0m, stripped and tinned
