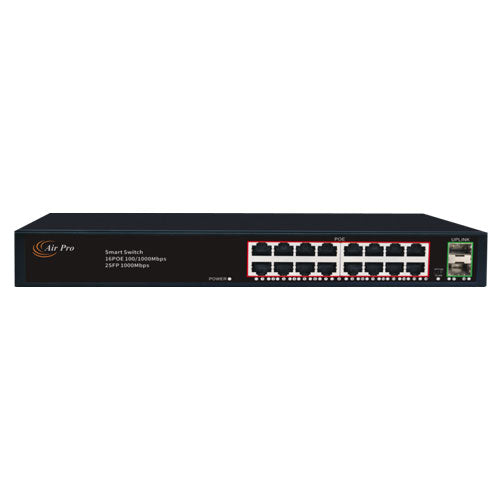

AirPro AP-SG4016P-2SF 16Ports 1000Mbps PoE Network Switch
AirPro AP-SG4016P-2SF 16Ports 1000Mbps PoE Network Switch
नियमित रूप से मूल्य
Rs. 0.00
नियमित रूप से मूल्य
विक्रय कीमत
Rs. 0.00
यूनिट मूल्य
प्रति
टैक्स शामिल।
शिपिंग की गणना चेकआउट पर की जाती है।
पिकअप उपलब्धता लोड नहीं की जा सकी
AirPro AP-SG4016P-2SF Datasheet
Features:
Features:
- 16*10/100/1000M RJ45 Ports with 2SFP
- PoE Power 220w
- Support PoE/PoE+.
- Apply to IEEE802.3、IEEE802.3u、IEEE802.3ab standard.
- Ethernet port supports 10/100/1000M adaptive.
- Support auto MDI/MDIX.
- Panel indicators to monitor working status and help fault analysis.
- Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard.
| Specification | |
| Model No | AP-SG4016P-2SF |
| Power | AC input （100-240V） |
| Ethernet | 16*RJ45 10/100/1000Mbps Ports with 2SFP |
| Switching Capacity | 32Gbps |
| Throughput | 23.8Mpps |
| Packet Buffer | 4M |
| MTBF | 100000 hours |
| Network protocol | IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT) EN61000-4-5(Surge) |
| LED Indicators | PWR（Power indicator）、Link（Network Link）、LOOP（Loop alarm）、1000M |
| PoE Budget | 220W /each port support PoE/PoE+ |
