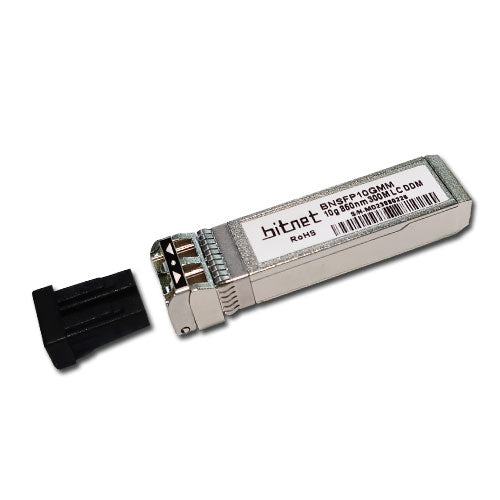

BitNet BNSFP10GMM Multi Mode 850nm 300M LC DDM DUAL Fiber Module SFP

BitNet BNSFP10GMM Datasheet

The BitNet SFP+ 10G, 850NM, 300M, MMF, DDM is a high-performance optical transceiver module designed to meet the demands of modern data networks. Key features include:

*Compliance:* This module complies with industry standards, including SFF-8431 and IEEE802.3ae, ensuring compatibility with a wide range of networking equipment.

*Optical and Electrical Interface:* It features optical and electrical interfaces that adhere to IEEE 802.3ae 10GBASE-SR and SFF-8431 standards, respectively, ensuring seamless integration into high-speed networks.

*Hot Pluggable:* The hot-pluggable design allows for easy installation and replacement without the need for network downtime.

*850nm VCSEL Transmitter:* Equipped with an 850nm Vertical-Cavity Surface-Emitting Laser (VCSEL) transmitter and a PIN photo-detector, it supports a maximum link length of 300 meters on 2000MHz/km Multimode Fiber (MMF).

*Wide Temperature Range:* It operates in temperatures ranging from 0°C to 70°C, making it suitable for a variety of networking environments.

*Low Power Consumption:* The module is energy-efficient, helping to reduce overall power consumption in network setups.

*All-Metal Housing:* Its all-metal housing not only enhances durability but also provides superior Electromagnetic Interference (EMI) performance, ensuring a stable and interference-free network.

*Advanced Firmware:* The advanced firmware capabilities allow customer system encryption information to be securely stored within the transceiver.

*Cost-Effective Solution:* It offers a cost-effective SFP+ solution, enabling higher port densities and greater bandwidth in networking setups.

In summary, the BitNet SFP+ 10G, 850NM, 300M, MMF, DDM is a reliable and versatile optical transceiver module that meets the demands of modern high-speed data networks, offering compatibility, performance, and cost-effectiveness in one package.

Features :

• Compliant with SFF-8431 and IEE802.3ae
• Optical interface compliant to IEEE 802.3ae 10GBASE-SR
• Electrical interface compliant to SFF-8431
• Hot Pluggable
• 850nm VCSEL transmitter, PIN photo-detector
• Maximum link length of 300m on 2000MHz/km MMF
  Operating case temperature: 0 to 70°C
• Low power consumption
• All-metal housing for superior EMI performance
• Advanced firmware allow customer system encryption information to be stored in transceiver
• Cost effective SFP+ solution, enables higher port densities and greater bandwidth
