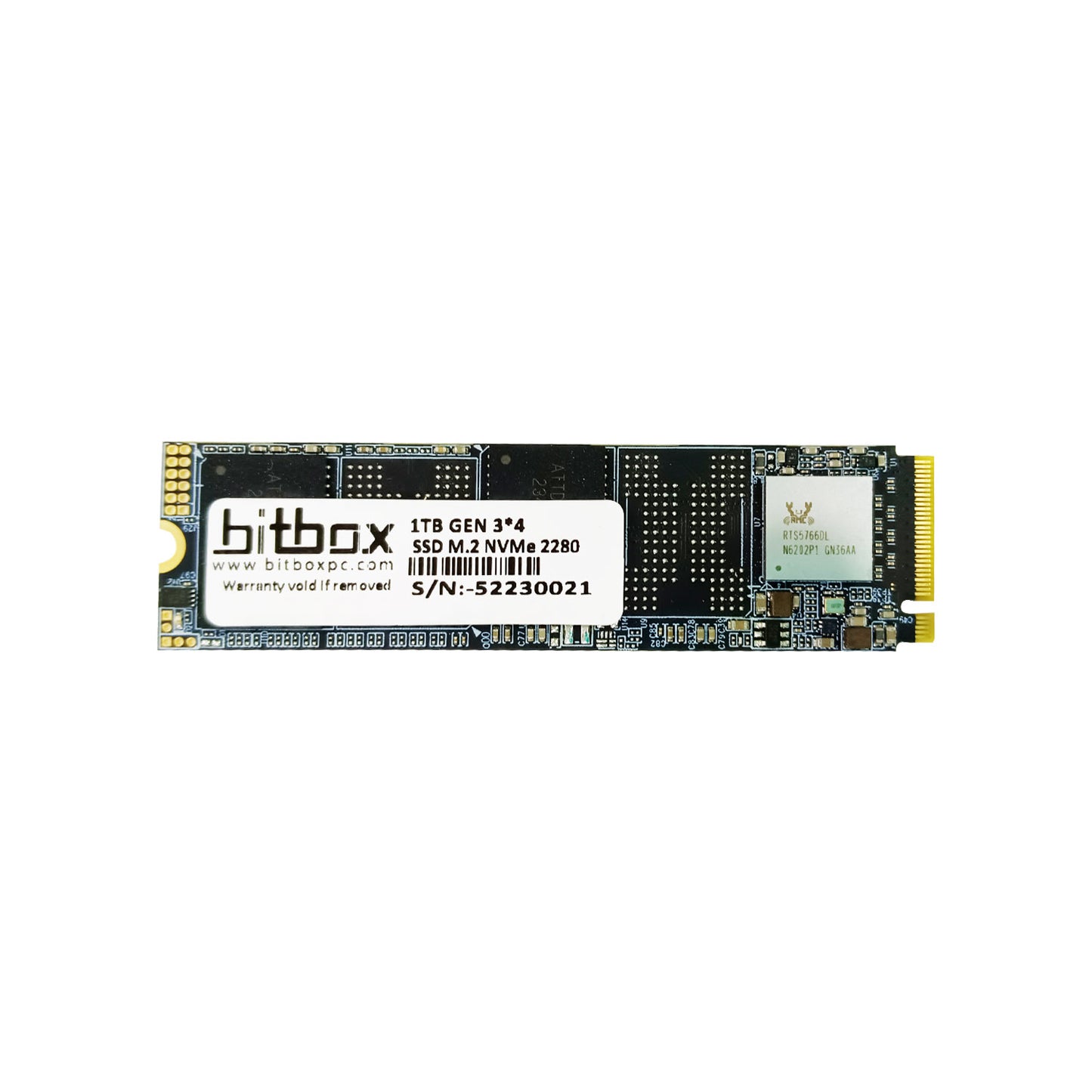

BitStor by BitBox 1TB SSD M.2 NVME 2280 PCI Express Gen3 & Gen4 for Laptop, Desktop
BitStor by BitBox 1TB SSD M.2 NVME 2280 PCI Express Gen3 & Gen4 for Laptop, Desktop
पिकअप उपलब्धता लोड नहीं की जा सकी
BitBox M.2 PCIe 2280 SSD which adopts SM2263XT SSD controller is NVM Express SSD
is designed as the standard M.2 2280 form factor with PCIe interface. It supports PCIe Gen
3x4 and compliant with NVMe 1.3 protocol providing excellent performance.
Product Features:
• Capacity: 1 TB
• 1M sequential read@Q8T1 : 2000
• 1M sequential write@Q8T1 : 1600
• PCI Express Gen3 & Gen4: Single port X4 lanes
• Compliant with PCI Express Base Specification Rev. 3.0
• Compliant with NVM Express Specification Rev.1.3
• B27B 3D TLC NAND type flash built in
• Static and Dynamic Wear Leveling and Bad Block Management
• Support up to queue depth 64K
• LDPC + RAID
• Support SMART and TRIM commands
• 100% tested HW and SW
System Requirements
Operating Voltage Requirement: Vcc = 3.3V ±5%
Operating System: Supported by all operating systems
Interface: Socket 3（M key）
Installation Requirements: System Hardware which supports Socket 3（M key) standards System Hardware includes M.2 socket or transfer board
Physical Specifications
Mechanical SPECIFICATIONS (SM2263XT PCBA)
Length: 80.00 ± 0.15 mm
Width: 22.00± 0.15 mm
Thickness: 2.05 ± 0.2 mm
Weight: 7.0± 0.2g
Performance Specifications
Access Time: 0.2 ms
Seek Time: 0 ms
Mount Time: Dependent on system HW and SW
Power on to Ready: Dependent on system HW and SW
Data Transfer Time: Rated Data Transfer Speeds are maximums based on Crystal Disk Mark 8.0.4
