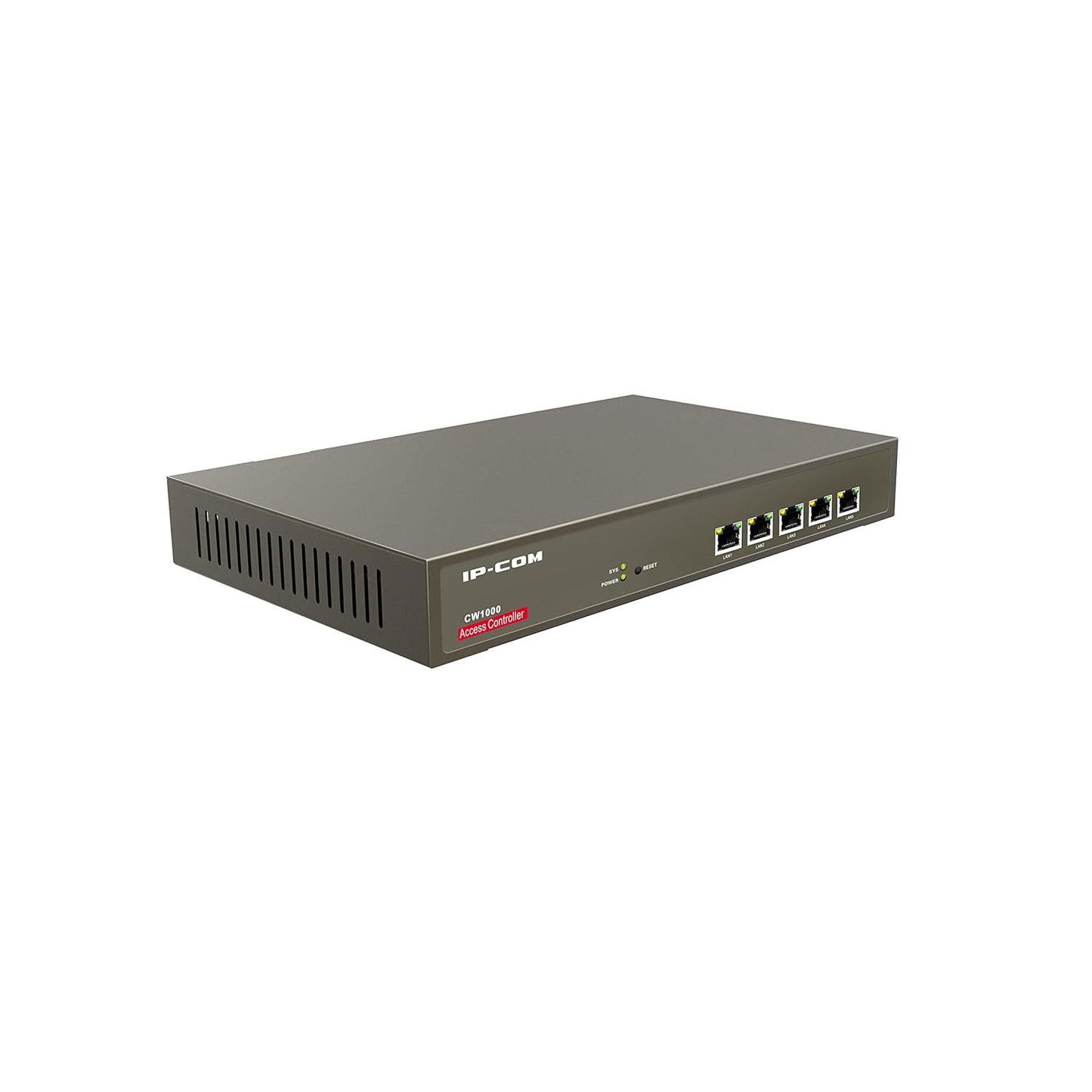

IP-COM Access Point Controller - CW1000

IP-COM CW1000 Datashee

• 5 Gigabit ports | CW1000 can be deployed in branch network mode, you just connect the CW1000 to the core switch without changing your network topology, then you can manage all the APs in the newtork.
• Discover AP Automatically | Adopt of IP-COM latest software system, CW1000 can manage up to 512 Wireless Access Points and monitor 3000 online clients simultaneously.
• Maximum managed number of APS up to 512, default setting is 256 | Adopt of private comunication protocal, after APs connected to the network, the APs will nogatiate with access controller automatically and managed by Access controller. Then, you can find all the APs list on Access controller.
• Modify the Description of APs to identify location | CW1000 can define multiple SSID for the AP and tagging VLAN ID to each SSID to establish different Internet access right.
• Unified manage AP‘s SSID, Channel, Security, Output Power, Client Limit | CW1000 integrate abundant wireless features management such as AP's Description, SSID, Channel, Security, Output Power, Clients Limit, it also support abundant maintain features like APs/Clients Online Status Monitor, Batch Upgrade/Reboot/Reset APs, AP Failure Alarm, AP Traffic Alarm. All these functions make it easy to manage APs in a single location.

Specification:

Model NO. : CW1000

AP Management Capacity : 512

Dimension :  294*178.7*44(mm)

Consumption : 10W

Interface :  5*GE LAN Ports

Button : 1*Reset 1*Power Switch

Power : AC100～240V 50/60Hz,0.3A

Compliant Standard : IEEE 802.3ab/3u/3

LAN Setting  : static IP

DHCP Server for AP : Support

VLAN : VLAN ID 2-4094

Operating Temperature : -10℃~45℃

Storage Temperature : -30℃~70℃

Operating Humidity : 10%~90% non-condensing

Storage Humidity : 10%~90% non-condensing
