IP-COM

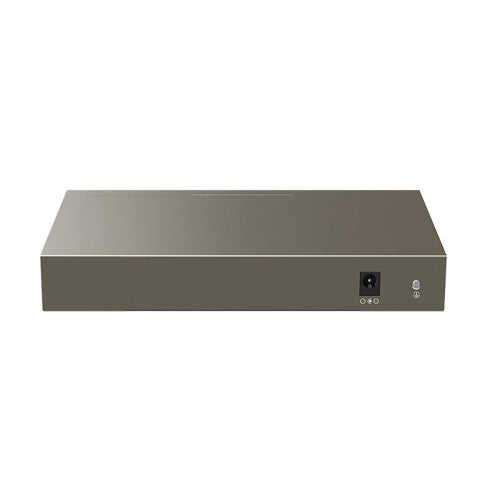

IP-COM G1109P-8-102W 9-Port Gigabit Unmanaged Switch with 8-Port PoE
IP-COM G1109P-8-102W 9-Port Gigabit Unmanaged Switch with 8-Port PoE
नियमित रूप से मूल्य
Rs. 5,999.00
नियमित रूप से मूल्य
Rs. 25,999.00
विक्रय कीमत
Rs. 5,999.00
यूनिट मूल्य
प्रति
टैक्स शामिल।
शिपिंग की गणना चेकआउट पर की जाती है।
पिकअप उपलब्धता लोड नहीं की जा सकी
IP-COM G1109P-8-102W Datasheet
Features:
G1109P-8-102W is a 9-Port Gigabit Desktop Switch With 8-Port PoE developed by IP-COM. It provides 8 10/100/1000 BASE-TX RJ45 ports. Ports 1 to 8 support IEEE 802.3af PoE standard with each port providing power of 15.4W, or support IEEE 802.3at PoE+ standard with each port providing power of 30W. The whole switch provides power up to 92W. By using CAT5 twisted pairs, it can provide power and transmit data to APs, IP cameras, IP phones, and so on. In addition, all ports support 6 kV lightning protection, Port based VLAN, making your network deployment more convenient and cost-effective.
| Specification | |
| Model No | G1109P-8-102W |
| Standard&Protocol | IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at |
| Indicator | 9*Link/Act per device 1*Power per device |
| Interface | 8 10/100/1000M Base-T ports(Data/Power) 1 10/100/1000M Base-T ports(Data) |
| Port | Lightning Protection 6KV |
| Exchange Capacity | 18 Gbps |
| Packet forwarding rate | 13.39 Mpps |
| PoE supply management | Port 1-8 support IEEE802.3at/af PoE standard |
| PoE through pin | 1 2 4 5 +;3 6 7 8 - |
| Voltage input range | AC: 100-240V～50/60Hz DC：51V 2A |
| Power Consumption | In full configuration: 102W PoE Max Power Supply: 92W |
| Dimensions | 177.5*104*26mm ( W x D x H ) |
