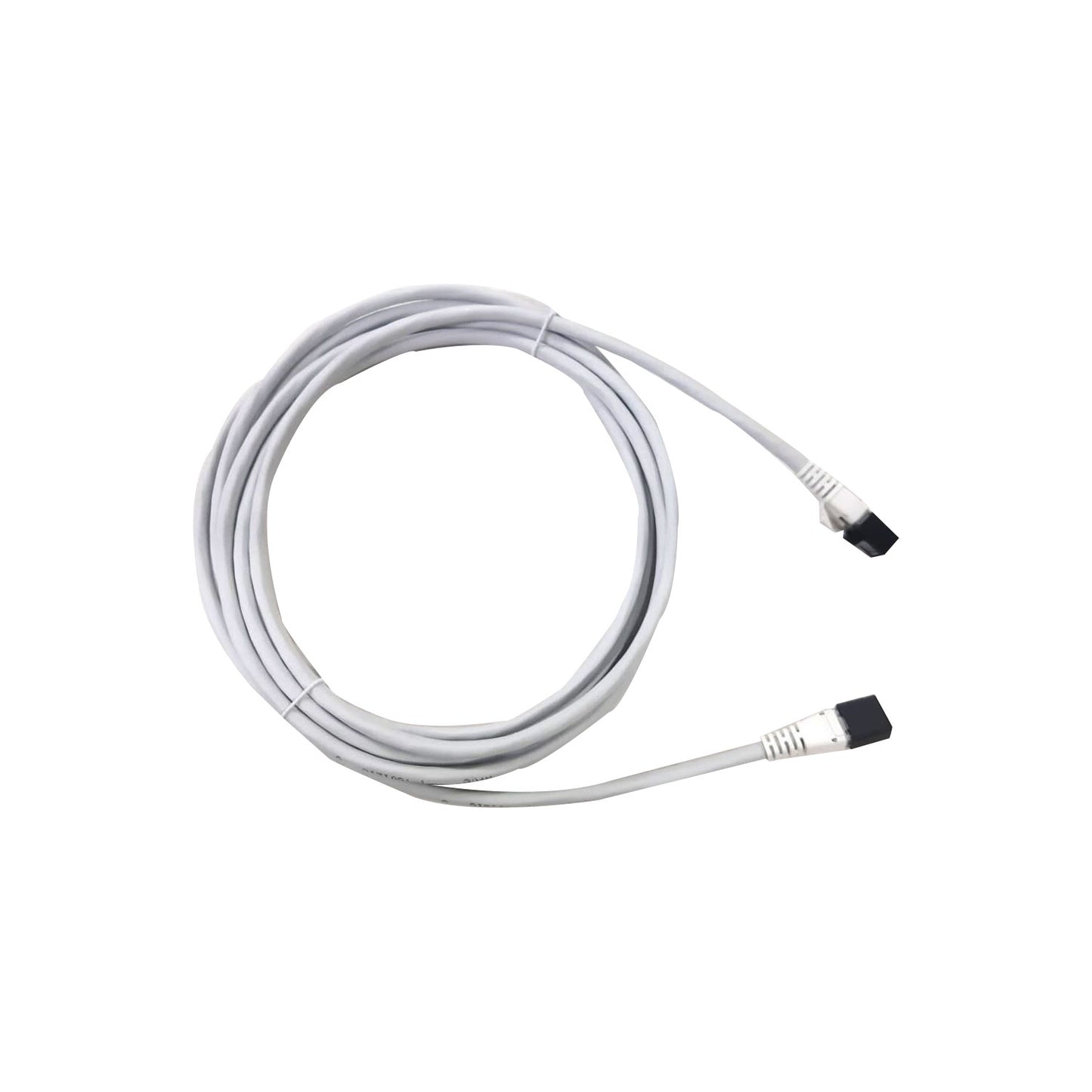

R&M CAT 6A UTP Patch Cable 10ft Gry LSZH R830781

R&M R830781 Datasheet

R&Mfreenet Cat.6A patch cords are used for connecting the network equipment to patch panels and telecommunications outlets. They are suitable for frequencies of up to 500 MHz.

• Fulfill the requirements of Category 6A, Class EA (500MHz) according to the present standard of the ISO/IEC 11801.
• Complies with the Category 6A specifications of the IEC 60603-7-41 / IEC 60603-7-51 standard with the Cat.6A connection module
• Tested according to IEC 61935-2
• Each individual patch cord are tested transmission technology
• Can also use as Cat5e or Cat6 (backwards compatible)
• Strain relief are provided with wide function
• Strain relief according to TIA/EIA-568-B.1-1
• Lengths from 0.5 ,to 15m available
• Colors in grey, yellow, red, Blue (0.5 Mtr to 15Mtrs), orange and black(1,2,3&5)
• Impedance of 100 ohm
• Shielded and unshielded in LSZH versions available

Specification :

Model No  :  R830781

Inner conductor diameter : AWG26/7

Number of pairs : 4

Screen 1 pair : Non

Outer screen : Non

Jacket : LSZH

Jacket Thickness : 0.51 mm

Bending Radius : Min.8x Cable Diameter

Outer Diameter : max. 6.5 mm
