Schneider

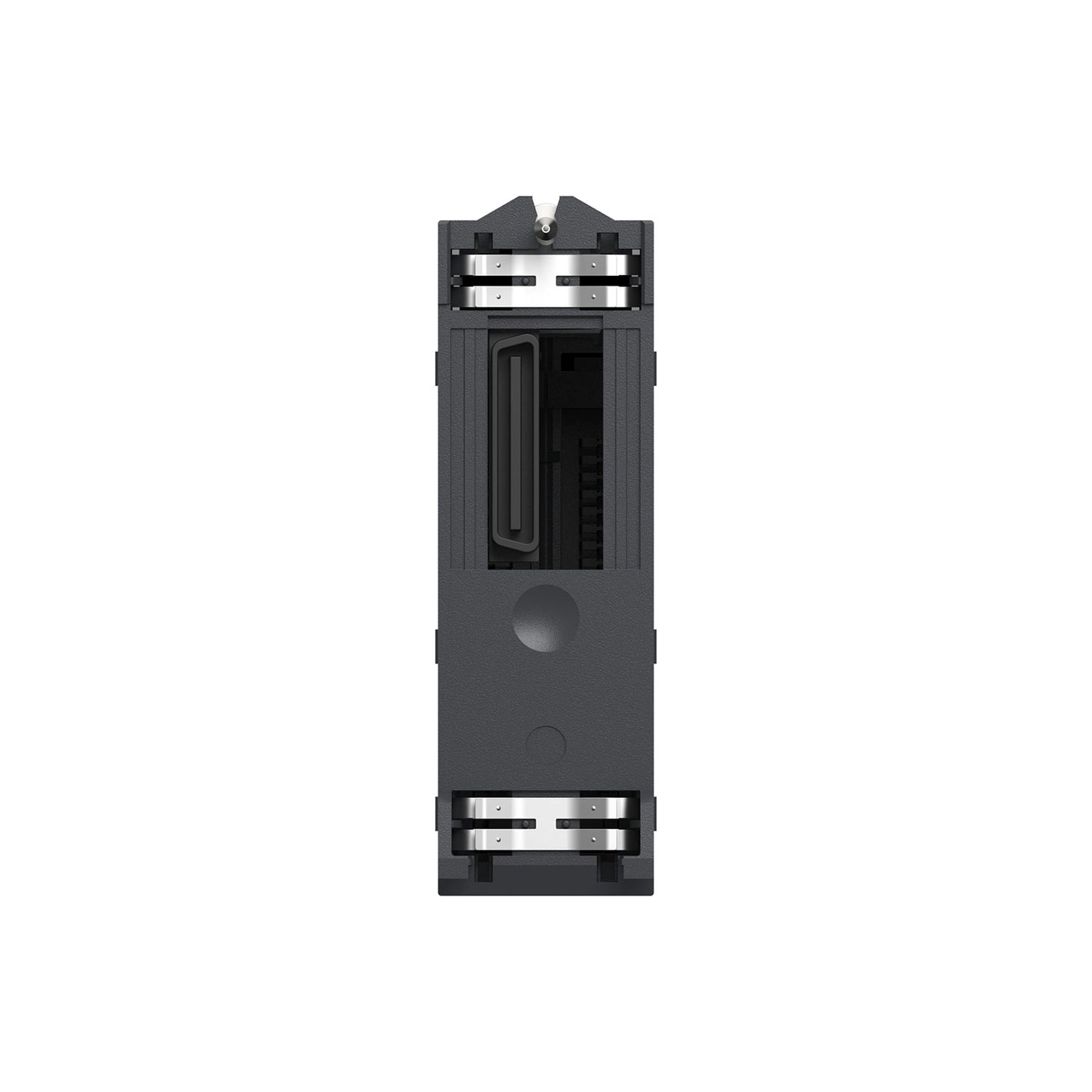

Schneider BMXART0814 analog input module X80 - 8 inputs - temperature

Schneider BMXART0814 analog input module X80 - 8 inputs - temperature

नियमित रूप से मूल्य Rs. 426,216.00
नियमित रूप से मूल्य Rs. 852,432.00 विक्रय कीमत Rs. 426,216.00
बिक्री बिक गया
टैक्स शामिल। शिपिंग की गणना चेकआउट पर की जाती है।

Schneider BMXART0814 Datasheet

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Range of product : Modicon X80

Product or component type : Product or component type

Electrical connection : 40 ways 2 connectors

Isolation between channels : Isolated

Input level : Low level

analogue input number : 8

Analog/digital conversion : Sigma delta 16 bits

Analogue input resolution : 15 bits + sign

Permitted overload on inputs : +/- 7.5 V +/- 1.28 V
+/- 7.5 V +/- 160 mV
+/- 7.5 V +/- 320 mV
+/- 7.5 V +/- 40 mV
+/- 7.5 V +/- 640 mV
+/- 7.5 V +/- 80 mV

Common mode rejection : 120 dB 50/60 Hz

Differential mode rejection :  60 dB 50/60 Hz

Cold junction compensation : External by Pt100 probe

Type of filter  : First order digital filtering

Nominal read cycle time : 400 ms with temperature probe
200 ms with thermocouple

MTBF reliability : 900000 H

Operating altitude : 0...2000 m
2000...5000 m with derating factor

Status LED : 1 LED (green) RUN
1 LED per channel (green) channel diagnostic
1 LED (red) ERR
1 LED (red) I/O

Net weight : 0.165 kg

Current consumption : 220 mA at 3.3 V DC
50 mA at 24 V DC

IP degree of protection : IP20

Directives : 2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
