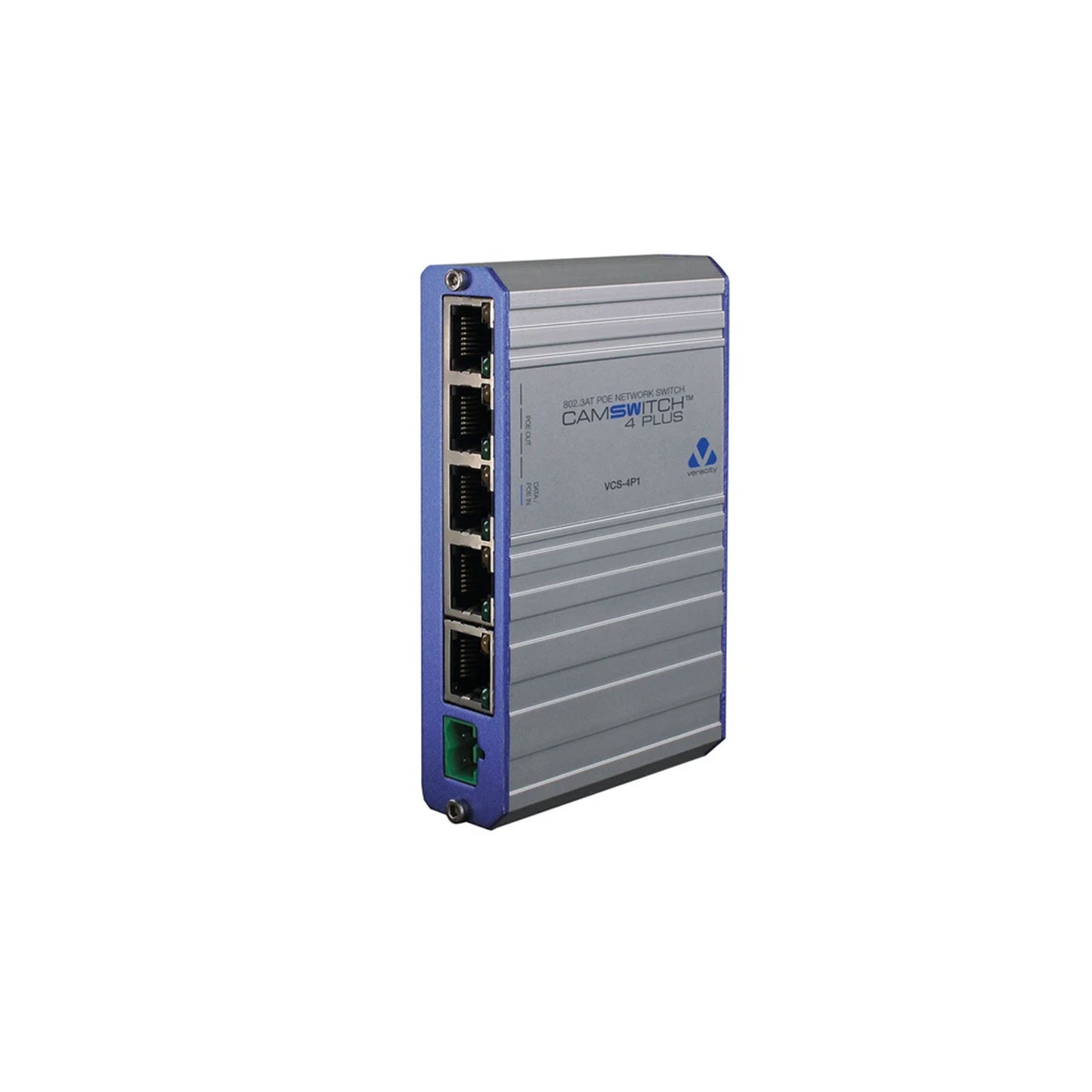

Veracity VCS-4P1 CAMSWITCH 4 Plus POE PLUS NETWORK SWITCH

VCS-4P1 Datasheet

The diagram shows a CAMSWITCH 4 Plus powered by an OUTSOURCE POE injector (external 57V DC PSU optional). The POE input port also serves as the uplink port to the main network switch. Four POE IP cameras are connected and powered by the device.

• Powered by up to 90W POE (802.3bt).
• 802.3af POE / 802.3at POE Plus compatible outputs
• Up to 80 watt power budget.
• Auto-configuring 10/100 Ethernet switch.
•  4 POE ports and 1 uplink port.
• Rugged enclosure with adjustable mounting brackets.

POWER INPUT

Power source : DC power supply or Power over Ethernet

DC connector : Detachable screw terminal Rear connector for rack-mount or 1500mA power supply (VCS-8P2) Adaptor cable included for 1500mA power supply (VCS-4P1)

DC voltage : 44-57V, Class II isolated (Veracity power supply recommended)

POE standard : IEEE 8023.af or Veracity OUTSOURCE Plus (recommended for max. budget)

Device power : 3 watts typical (both models)

POE OUTPUTS

POE standard : IEEE 8023.af / IEEE 802.3at compliant Enhanced POE supports maximum range when used with OUTREACH Max, LONGSPAN or HIGHWIRE PowerStar (equivalent to using OUTSOURCE Plus or 57V power supply) Power budget limited by power source specified; see table on previous page

Ethernet INTERFACE :

Connector : RJ45, 5-port unmanaged 10/100 switch

Rates : 10BASE-T or 100BASE-T and duplex, auto-configuring for speed

Cable : Straight through or crossover Cat 5, Cat 5e or Cat 6 patch VCS-8P2 supports VLAN trunking

PHYSICAL/ENVIRONMENTAL

Dimensions : L 110mm / 131mm with side clips W 64mm / 76-80mm including connectors H 22mm (VCS-4P1) / 40mm (VCS-8P2)

Mounting (brackets inc.) : 5mm mounting holes on 122mm centres

Weight : 135g [4.8oz] (VCS-4P1) / 225g [7.9oz] (VCS-8P2)

Operating temperature : -10oC to 50oC [14oF to 122oF]

Relative humidity : Up to 85%, non-condensing

Compliance : CE, FCC, RoHS
