Veracity VCS-8P2-MOB CAMSWITCH 8 Mobile 12V-24V POE PLUS NETWORK SWITCH

VCS-8P2-MOB Datasheet

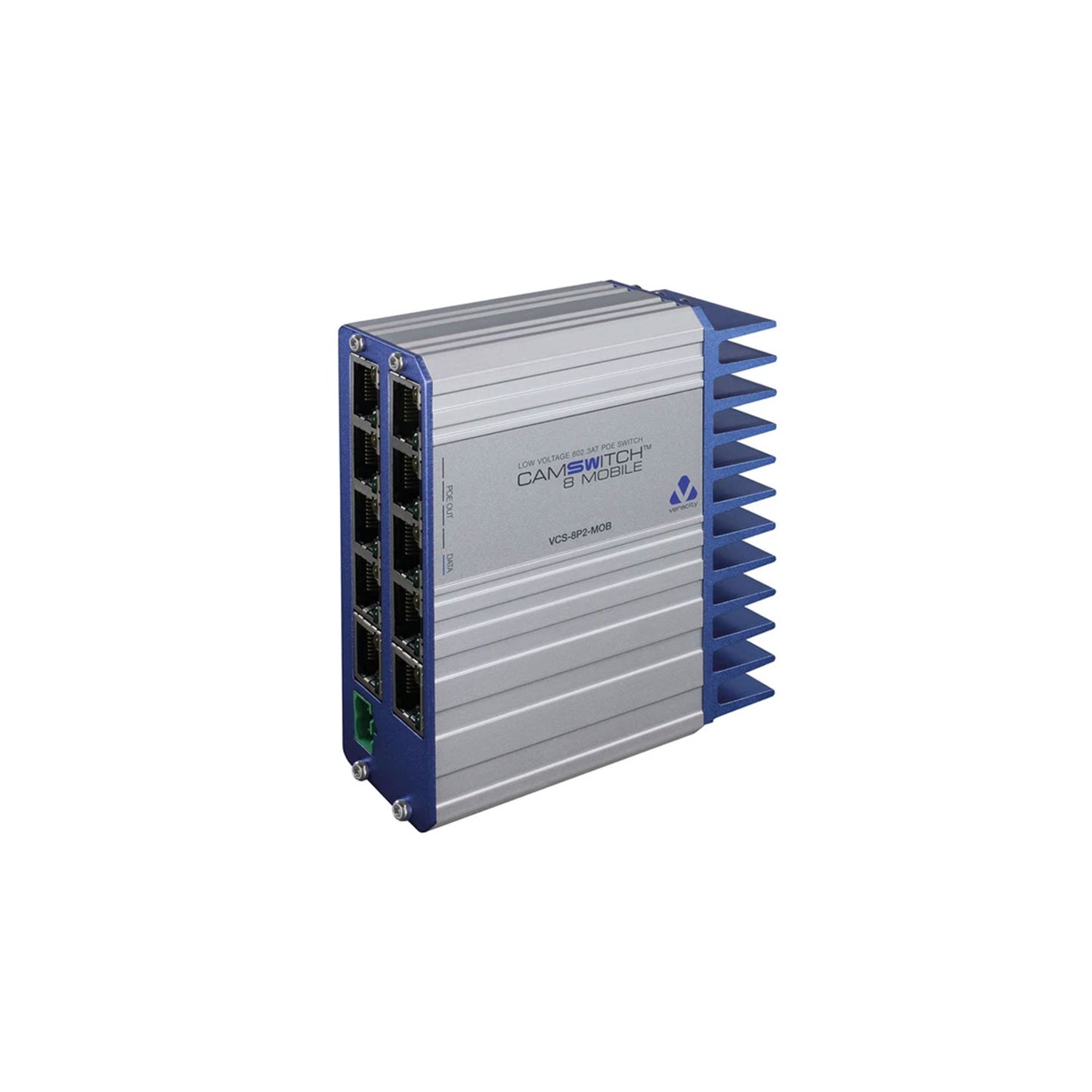

CAMSWITCH 8 Mobile is designed to be powered by a 12V to 24V DC power source (e.g. a vehicle battery). Up to 8 POE devices can be connected and powered by the device with a total power budget of 80W. The two additional ports can be used for a mobile NVR and an NTP Time Server or a 4G Modem for example.

• 802.3af POE / 802.3at POE Plus compatible outputs.
• Converts a wide input voltage range to POE levels.
• Up to 80 watt power budget.
• Auto-configuring 10/100 Ethernet switch.
• 8 POE ports and 2 uplink ports.
• Rugged enclosure with adjustable mounting brackets.

SPECIFICATION

POWER INPUT

Connector : Detachable screw terminal

Voltage : 8.5 - 40V (minimum startup voltage is 10.5V, supports engine cranking and reduce overdischarge) DC only (contact Veracity for 24V AC applications)

Fusing : The use of an external fuse is recommended. Rating: 5 amps for 24V DC or 10 amps for 12V DC supply, slow blow type

POE OUTPUTS

POE standard : IEEE 8023.af / IEEE 802.3at compatible Not isolated from DC input; for use in closed system transport applications; connected devices must be IEEE compliant Veracity enhanced POE supports maximum efficiency and range

POWER BUDGET

24V input : 80 watts total camera power

12V input : 80 watts ( reduce to 65 watts for max 30ºC temperature rise above ambient )

<12V input : 60 watts ( reduce to 50 watts if voltage can drop below 10V ) POE power conversion produces heat; the above limits are for horizontal mounting with ventilation Installation in enclosed spaces will cause additional heating and power limiting Warning: enclosure may become hot in operation

Ethernet INTERFACE

Connector : RJ45, 5-port unmanaged 10/100 switch

Rates : 10BASE-T or 100BASE-T and duplex, auto-configuring for speed

Cable : Straight through or crossover Cat 5, Cat 5e or Cat 6 patch VCS-8P2-MOB supports VLAN trunking

PHYSICAL/ENVIRONMENTAL

Dimensions : L 110mm / 131mm with side clips W 100mm including connectors H 40mm

Mounting : (brackets inc.) 5mm mounting holes on 122mm centres

Weight : 290g [10.2oz] (VCS-4P1-MOB) / 350g [12.3oz] (VCS-8P2-MOB)

Operating temperature :  -10oC to 50oC [14oF to 122oF]

Relative humidity : Up to 85%, non-condensing

Compliance : CE, FCC, RoHS
