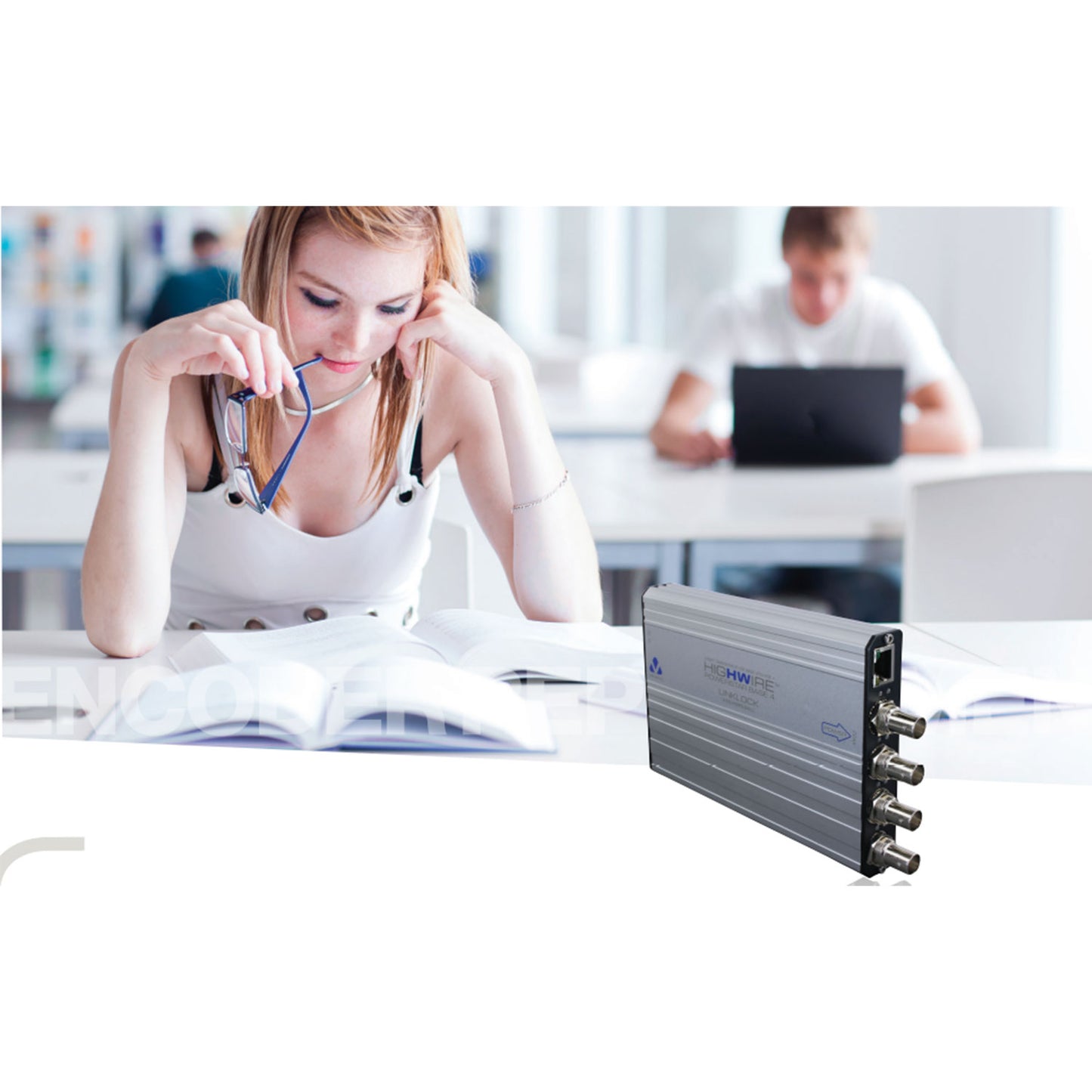

Veracity VHW-HWPS-B4 HIGHWIRE Powerstar Base 4-CH ETHERNET & POE OVER COAX

VHW-HWPS-B4 Datasheet

HIGHWIRE Powerstar Base 4 is powered by a 57V DC PUS and delivers Ethernet and POE over legacy coax, for maximum reliability and with minimal recabling. Each channel connects to a HIGHWIRE Powerstar (Camera), Duo or Quad unit.

• Re-use existing coax currently used for analogue cameras.
• Replace typical 4-channel video encoders with a full IP system.
• Reliably power new IP cameras with POE over coax.
• Fully automatic installation - no set-up of EOC adaptor required.
• Simple fast, cost-effective installation, less time on site.
• Compatible with HIGHWIRE Powerstar Camera EOC adaptors.
• Gigabit Ethernet network uplink and optional SFP port.

SPECIFICATION

HIGHWIRE INTERFACE

Connector type : BNC 75 ohm x 4

Cable type : Any 75 ohm coaxial (other impedances supported)

Range : Up to 300 metres [1000ft] on RG59 or 500 metres [1640 feet] on RG11 at full rate

Bandwidth : 200 Mbps (total up + down) x 4

ETHERNET INTERFACE

Connector type : RJ45 with optional SFP socket for fibre

Cable type : Cat5/6 Patch or crossover, auto-detected or as per optional SFP device

Rate : Gigabit Ethernet, Full duplex (1000Base-T) with auto-negotiation

LEDS

Status indicators : HIGHWIRE coax link Ethernet link/activity (BASE) POE-over-coax See Quickstart Guide for LED indicator table and diagnostics

POWER

Device power : 5W rising to 10W under full POE load

POE Out : IEEE 802.3af (POE) or IEEE 802.3at (POE Plus) up to 25W per channel

Power input : 57V DC, up to 6A via a 2 pin detachable screw terminal (supplied) or a 2-pin Micro-Fit power connector

PHYSICAL/ENVIRONMENTAL

Dimensions : L 173mm (including BNC connectors) W 110mm H22mm

Weight : 356g [12.5oz

Operating temperature : 0ºC to 40ºC [32ºF to 104ºF]

Relative humidity : 85% non-condensing

Compliance : FCC, UL, UKCA, CE, RoHS, REACH
