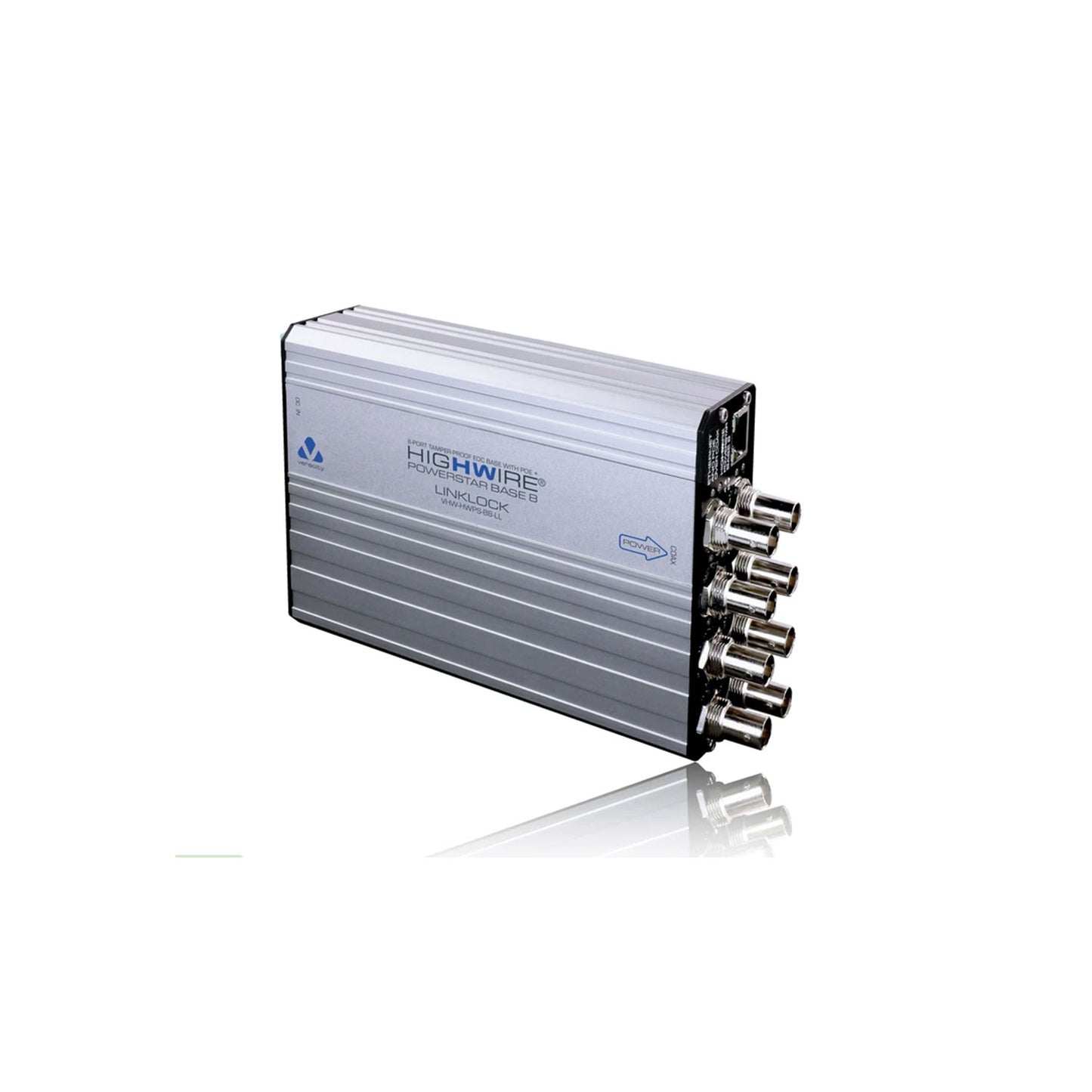

Veracity VHW-HWPS-B8-LL HIGHWIRE Powerstar Base 8 Linklock TAMPER-PROOF EOC & POE

VHW-HWPS-B8-LL Datasheet

HIGHWIRE Powerstar Base 8 Linklock is connected to standard HIGHWIRE Powerstar (Camera), Duo or Quad units in exactly the same way as a normal Base 8 unit. The Linklock technology monitors the connection for tampering or interference.

• Tamper-proof Ethernet and POE over coax.
• 8 tamper-proof channels per Base unit.
• Tampering or interference with cabling shuts down channel.
• Relay contact alarm output on tamper, with reset pins.
• 32 POE or POE Plus channels in 1U with four Base units.
• Automatic configuration for simple installation.
• Full duplex 100Base-TX performance on each coax.

SPECIFICATION

HIGHWIRE INTERFACE

Connector type : BNC 75 ohm x 8

Cable type : Any 75 ohm coaxial (other impedances supported)

Range : Up to 300 metres [1000ft] on RG59 or 500 metres [1640 feet] on RG11 at full rate

Bandwidth : 200 Mbps (total up + down) x 8

ETHERNET INTERFACE

Connector type : RJ45 with optional SFP socket for fibre

Cable type : Cat 5/6 Patch or crossover, auto-detected or as per optional SFP device

Rate : Gigabit Ethernet, Full duplex (1000Base-TX) with auto-negotiation

LINKLOCK INTERFACE

LINKLOCK Trigger : On disconnection or tamper of coax or network cable

LINKLOCK Alarm : Relay switch output (NO, COM, NC) on screw terminals connector

LINKLOCK Reset : Via reset pins on screw terminals connector

Connector : 5-pin removable screw terminal connector

LEDS

Status indicators : HIGHWIRE coax link - flashes red when LINKLOCK is triggered Ethernet link/activity (BASE) - flashes red when LINKLOCK is triggered See Quickstart Guide for LED indicator table and diagnostics. Guide also online

POWER

Device power : 10W rising to 20W under full POE load

POE Out : IEEE 802.3af (POE) or IEEE 802.3at (POE Plus) up to 25W per channel

Power input : 57V DC, up to 6A via a 2 pin detachable screw terminal (supplied) or a 2-pin Micro-Fit power connector

PHYSICAL/ENVIRONMENTAL

Dimensions : L 173mm (including BNC connectors) W 110mm H 40mm

Weight : 572g [20.2oz]

Operating temperature : 0ºC to 40ºC [32ºF to 104ºF]

Relative humidity : 85% non-condensing

Compliance : FCC, CE, UKCA, RoHS, REACH
