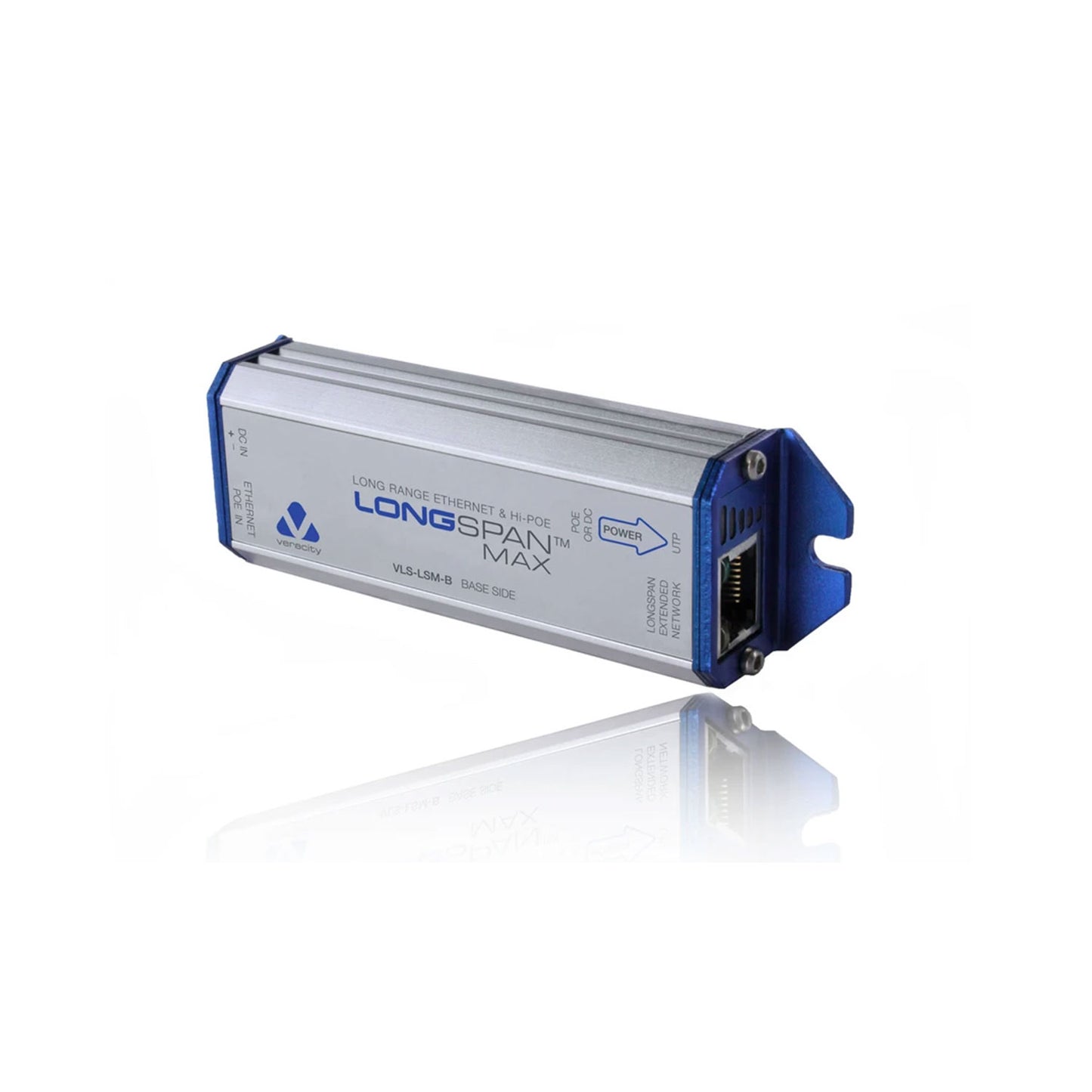

Veracity VLS-LSM-B LONGSPAN Max (Base) 90W LONG RANGE ETHERNE

VLS-LSM-B Datasheet

POE power levels drop quickly with distance. For maximum power delivery to the IP Camera, a local PSU may be used to power the LONGSPAN Max Camera device, in which case LONGSPAN Max Base could be replaced with a LONGSPAN Lite. The Base unit can output the maximum POE permitted by the 802.3bt standard.

• LONGSPAN enhanced with 90W POE capability (802.3bt).
• Long range point-to-point Ethernet over Cat5e or Cat6 cable.
• Unrestricted 100Base-TX at up to 820 metres.
• Can deliver 60W at 200 metres, 40W at 350 metres.
• Ruggedised, high performance over a wide temperature range.
• Smart power and diagnostic display for reliable installation.

SPECIFICATION

POWER

Device power consumption : 1.0 watts

POE in (Base) : IEEE 802.3bt input (60W max - optional DC power input connection recommended)

POE out (Camera) : IEEE 802.3bt output

DC power in (Base or Camera) : Detachable screw terminal (Veracity POE PSU recommended for max 90W output)

LONGSPAN INTERFACE

Connector : RJ45

Cable : Cat6, Cat5e, Patch wiring recommended, other wiring auto-corrected

Rate : 200Mbps (100Mbps full-duplex) up to 820 metres [2,690ft] (Cat6)

ETHERNET INTERFACE

Connector : RJ45

Cable : Patch or crossover, auto-detected

Rate : 100Base-TX full-duplex with auto-negotiation

LED INDICATORS

Ethernet RJ45 : Yellow: Link/activity, Green: power good

LONGSPAN link RJ45 : Yellow: Link/activity, Green: 10/100Mbps

POE | Base : Power available (10/25/40/50/60 watts) plus diagnostic codes (red)

POE | Camera : Power available (5/10/20/30/40/50/60/70 watts) plus diagnostic codes Above 70W with local power, 70W is indicated LED Status: Blue - On and available LED Status: Purple - Approaching available power limit LED Status: Red - Power limit exceeded

PHYSICAL/ENVIRONMENTAL

Dimensions | Base device : L 120mm (inc. brackets), W 36mm H 23mm [ L 4.7in, W 1.4in, H 0.90in ]

Dimensions | Camera device : L 113mm (inc. brackets), W 75mm H 22mm [ L 4.4in, W 2.9in, H 0.87in ]

Weight : Base device 100g [ 3.5oz ] Camera device 161g [ 5.7oz ]

Operating temperature : -40°C to 70°C [ -40°F to 158°F ]

Relative humidity : 85% non-condensing

Compliance : FCC, CE, RoHS, UKCA, BS EN 50121-4 (rail + metro)
