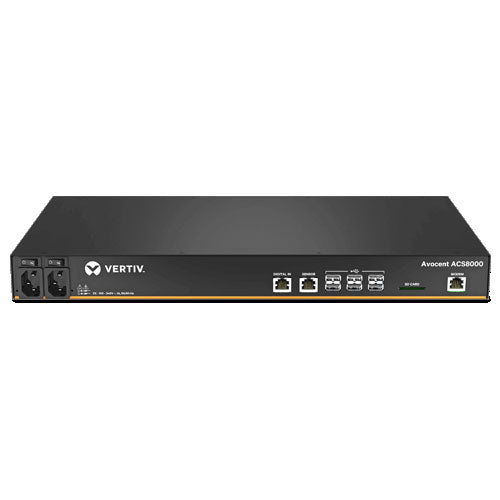

Vertiv Avocent ACS8032DAC-404 - ACS 8000 32-Port Dual-AC Console Server w/ Modem
Vertiv Avocent ACS8032DAC-404 - ACS 8000 32-Port Dual-AC Console Server w/ Modem
Regular price
Rs. 503,029.28
Regular price
Rs. 1,006,058.56
Sale price
Rs. 503,029.28
Unit price
per
Avocent ACS8032DAC-404 Datasheet
Features:
- Secure in-band and out-of-band network remote management
- Fast, automated configuration with Zero Touch Provisioning
- Access and troubleshoot remote locations using automatic network failover to cellular (and failback)
- Compliance with data center access and security policies - customizable, multiple access levels
- No need for adaptors with automatic Cyclades and pin-out conversions
- Expanded support for Rack PDUs from Emerson, ServerTech, Raritan and Eaton
- Support for Emerson GXT4 UPS system
- Integrated support for 1Gb SFP fiber modules
Specification | |
Model Number | ACS8032DAC-404 |
CPU | Dual-core ARM® Cortex™-A9 MPCore™ with CoreSight™ |
Memory | 1GB DDR3L RAM 16GB eMMC Flash |
Interfaces | 2 Gigabit Fiber SFP ports 2 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 1 RS-232 serial console port on RJ45 Up to 48 RS-232 serial ports on RJ45 First 2 ports selectable between RS-232/RS-422/RS-485 8 USB 2.0 Ports on Type A connector 1 full size SD Card slot Environmental sensor port on RJ45 (1-wire) 4 digital-in ports (smoke, leak, pressure and dry contact sensors) |
Power | Internal 100–240 VAC, 50/60 Hz Optional –48 VDC power supply Optional dual entry, redundant AC and DC power supplies |
Power Usage | Nominal voltage 120VAC: Typical 0.13A, 6.2W Maximum 0.47A, 28W Nominal voltage 240VAC: Typical 0.10A, 7W Maximum 0.29A, 28W Nominal voltage 48VDC (±20%) Typical 0.22A, 11W Maximum 0.67A, 33W |
Dimensions (W x D x H) | 17.250 x 9.5 D x 1.75 in. (43.82 x 24.13 x 4.45 cm) |
Weight | 7.5 lbs |
