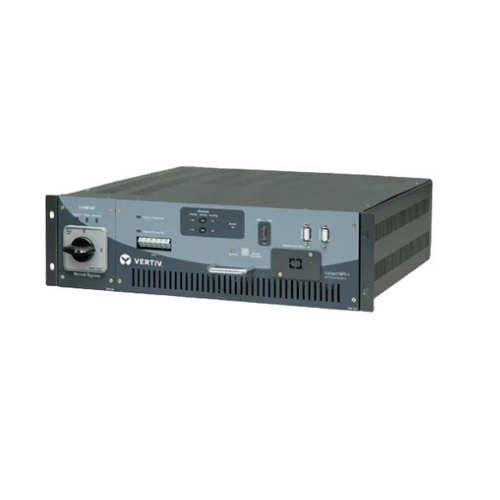

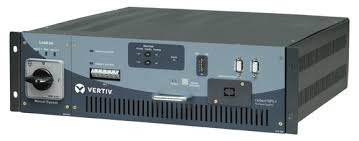

Vertiv NPSI 63 AMP 2 Pole NPS-I R32 (Network Power Switch)
Vertiv NPSI 63 AMP 2 Pole NPS-I R32 (Network Power Switch)
Couldn't load pickup availability
Vertiv NPSI 63 AMP 2 Pole NPS-I R32 Datasheet
The Vertiv Network Power Switch (NPS) is a remote power management device designed for networking equipment, data centers, and IT infrastructure. It enables users to control, monitor, and reboot connected devices via a network interface, improving uptime and operational efficiency.
Intelligent static transfer switches
Network Power Switch - I, Network Power Switch – II
Ensures maximum reliability to critical loads by eliminating system failures that are caused by power distribution problems.
The NPS-I & NPS-II switches allows instantaneous transfer of load between two power sources. It can be used to ensure complete redundancy of power supply upto the last piece of wire. It is useful in many applications, where redundant power supply is available, either from two UPS systems or one UPS and bypass source.
These switches are comprising of semiconductor switches, they ensure continuity of power to the load in the event of failure of one of the power sources. They have different user selectable parameters and in-built microprocessor.
Vertiv NPS-I R32 (63A, 2 Pole Ph + N) Specifications:
|
Parameter |
Specification |
|
No. of Switching Poles |
2 Pole (Ph + N) |
|
Nominal Output Current |
63 A |
|
Nominal Voltage |
220 / 230 / 240 V, 1 Phase (110 / 120 V optional) |
|
Voltage Tolerance |
–15 % to +10 % (Default) |
|
Nominal Frequency |
50 / 60 Hz, ±2 Hz (Default) |
|
Efficiency |
>98 % |
|
Overload Capacity |
125–150 % for 10 min, 150–200 % for 1 min, 200–400 % for 5 sec, 400–700 % for 600 ms, >700 % for 250 ms |
|
Duty |
Continuous |
|
Protections |
Input Under Voltage, Input Over Voltage, Output Overload, Output Short Circuit |
|
Transfer / Re-transfer Time |
<5 ms for Sync condition |
|
Manual Bypass Facility |
Make before break |
|
Acoustic Noise Level |
<45 dBA |
|
Operating Temperature |
0 to 40 °C |
|
Relative Humidity |
Up to 95 % (Non-condensing) |
|
Altitude |
<1000 m above sea level (without de-rating) |
|
Reference Standard |
IEC 62310 |
|
Enclosure Protection |
IP 20 |
|
Cooling |
Natural Cooling |
|
Dimension (W×D×H) |
440 × 450 × 132 mm (19″ Rack mountable, 3U Height) |
|
Color |
RAL 7021 |
|
Weight (Approx.) |
15 kg |
|
Cable Entry |
Rear Side |
|
LED Indications |
Source 1 Priority, Source 2 Priority, Alarm, Load on Static Switch |
|
PFC |
Alarm (Source 2 Abnormal or Back Feed) |
|
Other Features |
Hot Swappable Electronics static switching module; Fixed or variable source priority mode; Short circuit protection by electronic circuit; DSP-based control; Back feed protection; Inbuilt static switch fault detector; INSTAMON software for monitoring all status & alarm (optional) |
|
Communication Interface (Optional) |
RS-232 or Ethernet Connectivity, RS-485 MODBUS |
|
Output Sockets (63A) |
2 Outlets as per IEC320-C19 (Optional) (Rating 16 A / 250 VAC) |
