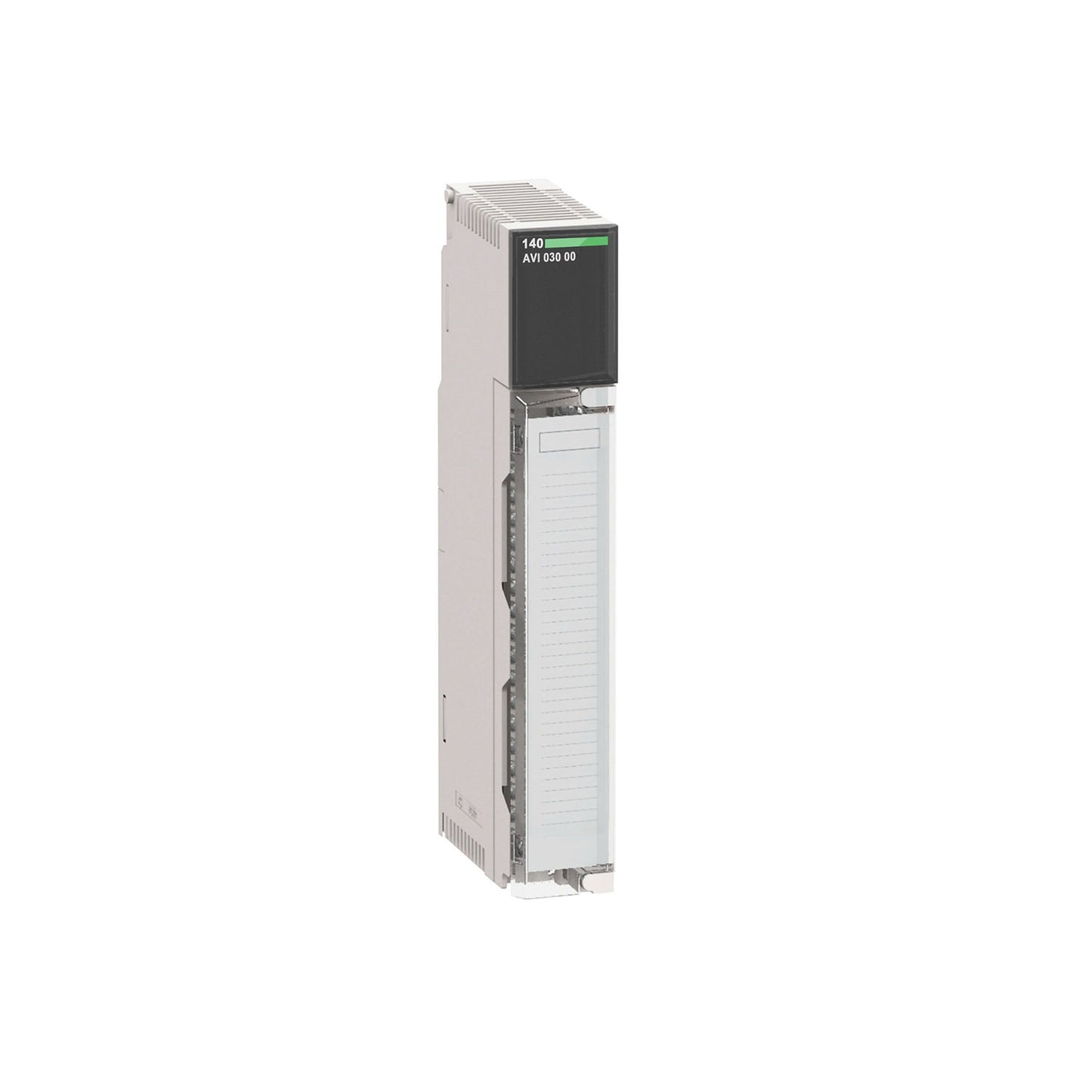

Schneider 140AVI03000 analog input module Modicon Quantum - 8 I multirange

Schneider 140AVI03000 Datasheet

SPECIFICATIONS:

Range of product : Modicon Quantum automation platform

Product or component type : Analogue input module

Type of filter : Single pole low pass - 3 dB at 847 Hz +/- 20%

Complementary

analogue input number : 8

input type : Differential

Addressing requirement : 9 input words

Analogue input type : Bipolar current: 20 mA
Bipolar voltage: +/- 10 V
Bipolar voltage: +/- 5 V
Unipolar current: 0...20 mA
Unipolar voltage: 0...10 V
Unipolar voltage: 0...5 V

Analogue input resolution : 16 bits +/- 10 V
16 bits +/- 5 V
16 bits 0...10 V
16 bits 0...20 mA
16 bits 0...5 V
16 bits 20 mA

Linear measuring range : (Input range) x 1.024 mA
(input range) x 1.024 V

Absolute maximum input : 50 V DC
25 mA

Power dissipation in W : 2.2 W

Update time : 10 ms
