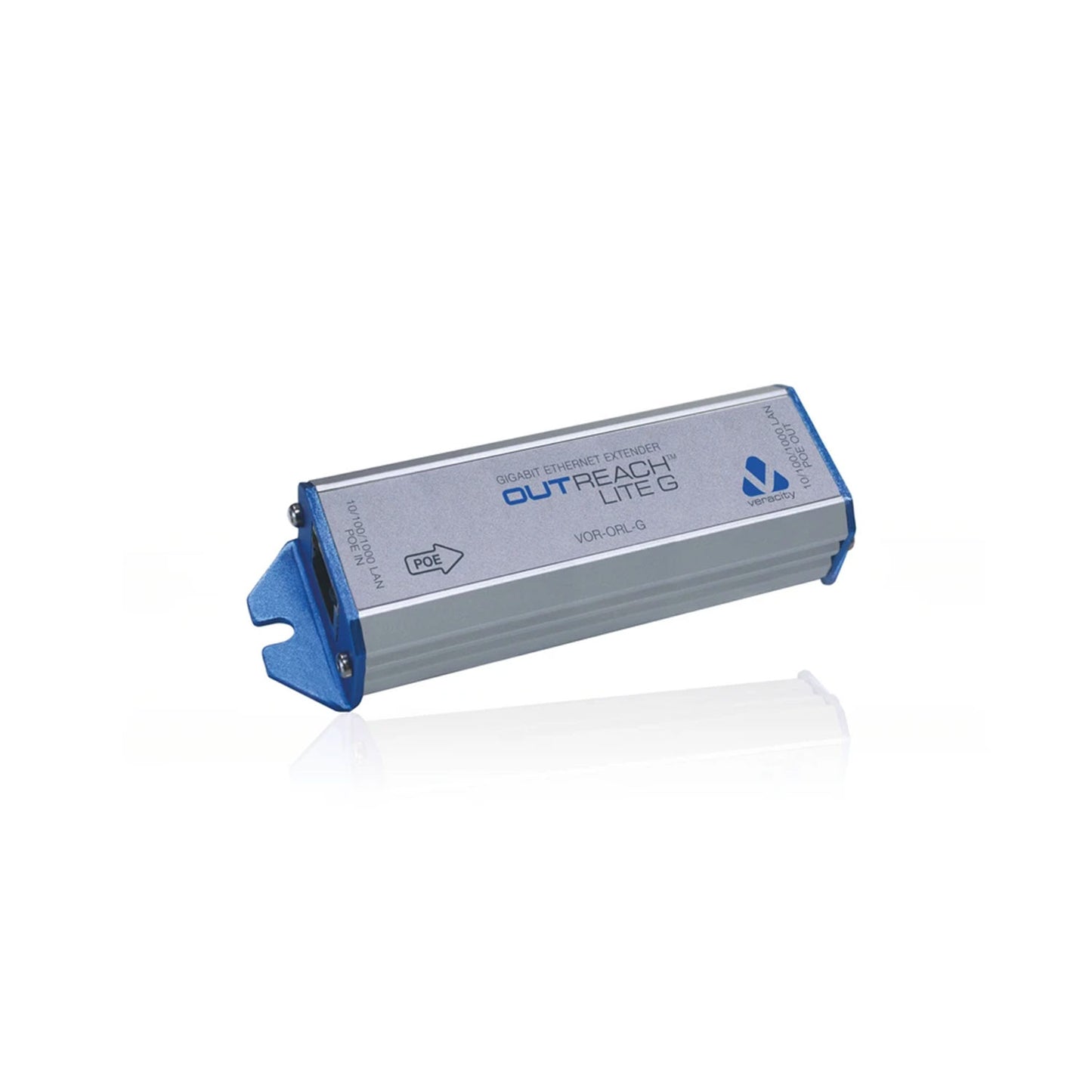

Veracity VOR-ORL-G OUTREACH Lite G GIGABIT ETHERNET EXTENDER

VOR-ORL-G Datasheet

OUTREACH Lite G is powered by POE, so it can double gigabit Ethernet range without requiring a local power outlet.

• Instantly doubles gigabit network range to 200 metres.
• No local power required.
• Full unrestricted gigabit network bandwidth.
• Universal 10/100/1000 compatibility.
• POE powered device
• Integrated mounting holes.

SPECIFICATION

POWER

Power consumption : 1.3 watts via POE

POE STANDARDS : IEEE 802.3af POE (802.3at and 802.3bt compatible, but not required) Class 2 powered device No POE forwarding

ETHERNET INTERFACE : Two independently auto-configuring 10/100/1000 ports (10Base-T/100Base-TX/1000Base-T, half/full-duplex) Patch or crossover cables supported

LEDS

Status Indicators : Power good, network link/activity (both ports)

PHYSICAL/ENVIRONMENTAL

Dimensions : L 119mm W 36mm H 24.5mm

Weight : 79g [2.8oz]

Mounting : Two 5mm diameter mounting holes. Centres 111mm apart

Operating temperature : -40°C to 70°C [-40°F to 158°F]

Relative humidity : Up to 85%, non-condensing

Compliance : CE, FCC, RoHS
