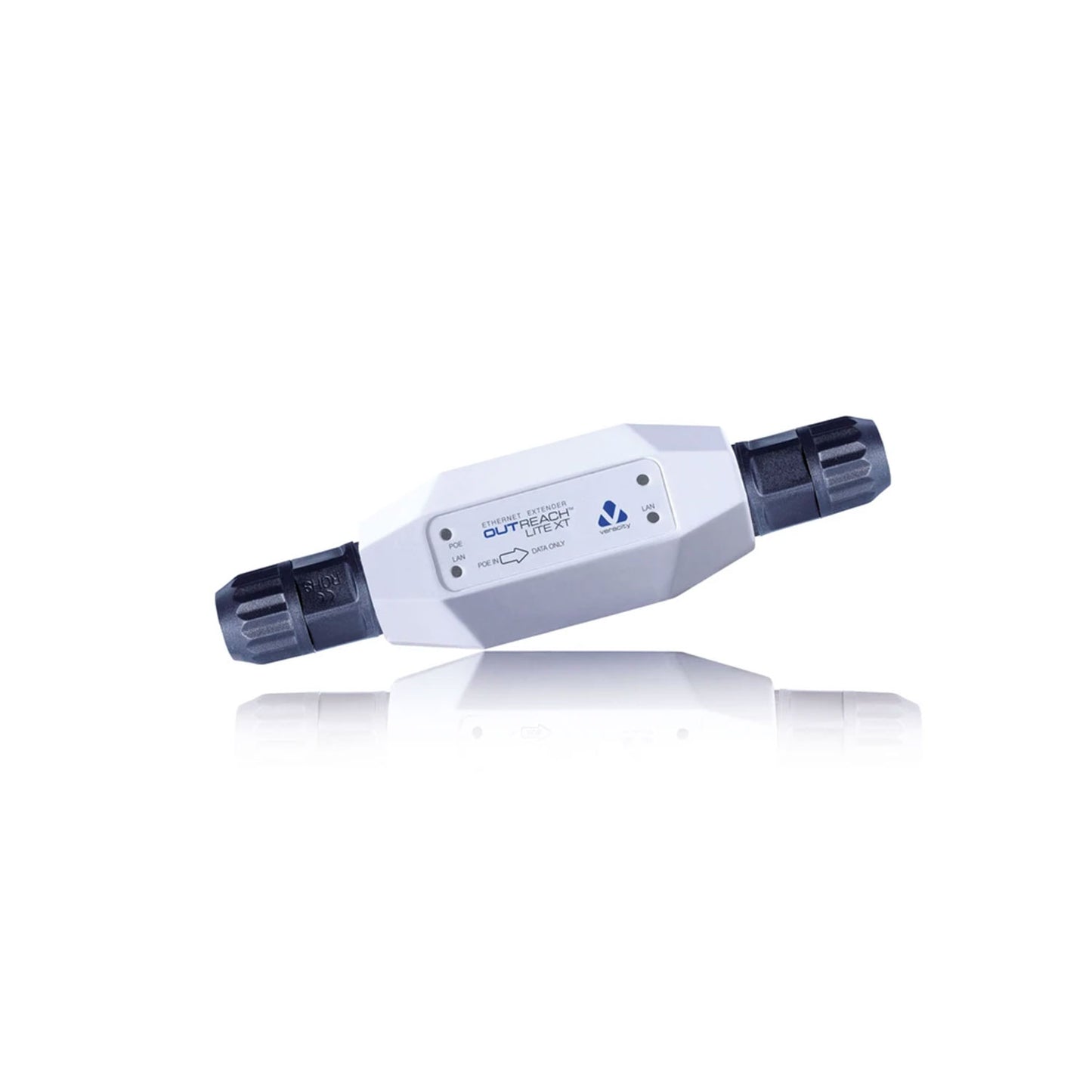

Veracity VOR-ORL-XT OUTREACH Lite EXTERNAL ETHERNET EXTENDER

VOR-ORL-XT Datasheet

OUTREACH Lite XT is powered by POE, so it can double100Base-TX Ethernet range externally without requiring a local power outlet.

• IP66/67 Nema 4X/6P tough enclosure for external installation.
• Instantly doubles cable range to 200 metres.
• Extend an additional 100 metres per unit with multiple units.
• Powered by POE (Power over Ethernet).
• Easy to fit cable seals for cables with existing RJ45 plugs.
• Universal 10/100 compatibility (Gigabit available).
• Secure wall mounting with detachable bracket.

SPECIFICATION

POWER

Power consumption : 1.3 watts via POE

POE STANDARDS : IEEE 802.3af POE (802.3at and 802.3bt compatible, but not required) Class 2 powered device No POE forwarding

ETHERNET INTERFACE : Two independently auto-configuring 10/100 ports (10Base-T/100Base-TX, half/full duplex) Patch or crossover cables supported

LEDs

Status indicators : Green LED - shows POE Power good Yellow LED - shows Ethernet link/activity

PHYSICAL/ENVIRONMENTAL

Dimensions : L 183mm W 50mm H 30mm

Weight : 104g [3.7oz], 126g [4.5oz] including plate

Mounting : 2 or 4, 7mm mounting holes on 50/60mm centres

Operating temperature : -40ºC to 70ºC [-40ºF to 158ºF]

Relative humidity : Up to 85%, non-condensing

Compliance : CE, FCC, Ul, UKCA, RoHS

Environmental : IP66/67, Nema 4X/6P
