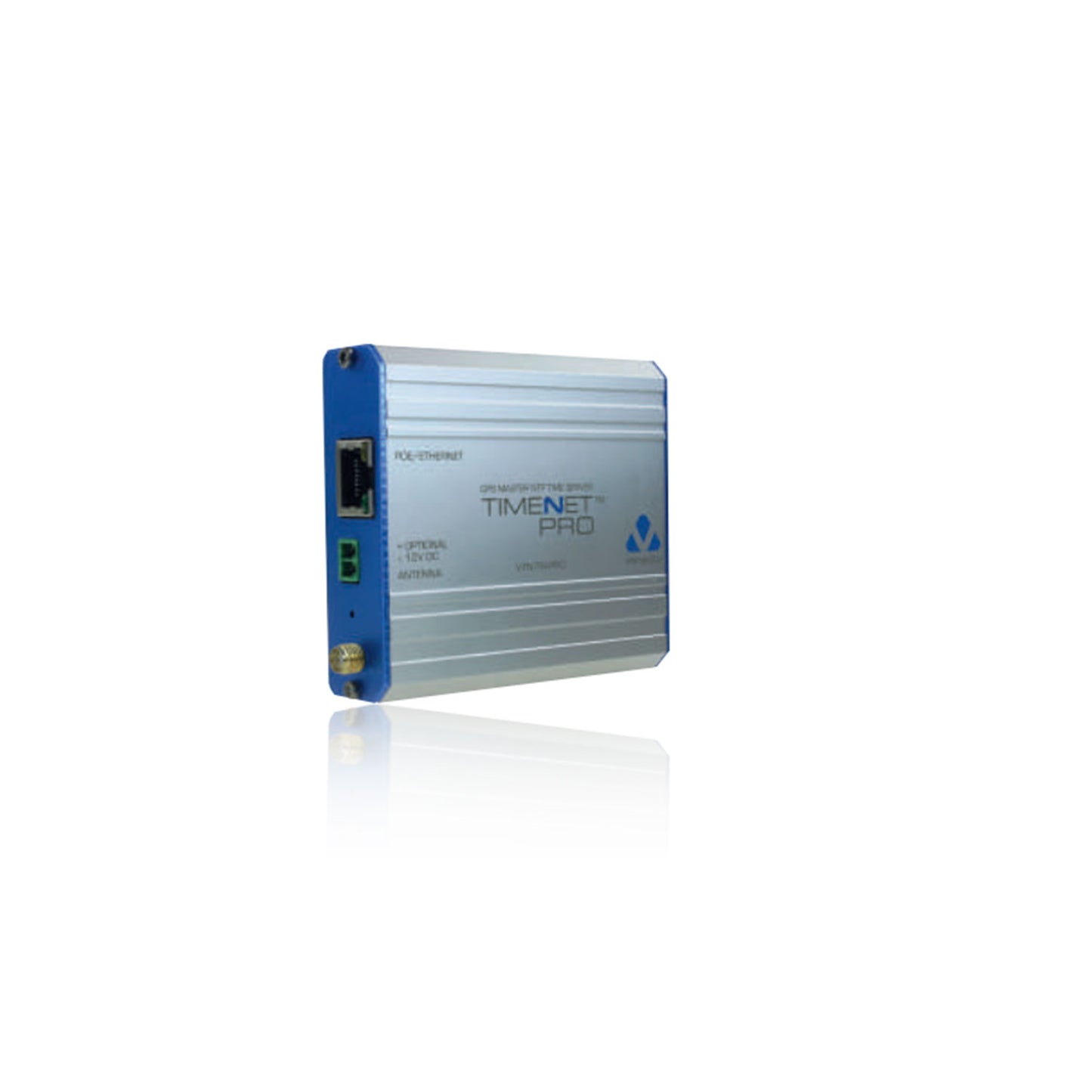

Veracity VTN-TN-PRO NTP Master Time Server (inc. antenna) TIMENET Pro

 Datasheet

• TIMENET Pro supports all NTP compatible devices
• Ideal for synchronising VMS + ACS servers & clients
• Ideal for closed or secure networks
• Ideal for mobile or vehicle-based applications
• Class 1 POE compatible (or 12V DC input)
• Simple browser interface allows fast installation
• Wide operating temperature range.

SPECIFICATION :

TIME SERVER

Time source : GPS Satellite

Protocol : NTP Stratum 1 Time Server

Accuracy : Ethernet NTP ± 1ms overall GPS source ±0.1μS

ANTENNA

Connector : SMA Male

Cable : 5 metre cable, ( optional 10 metre extension )

Antenna head : GPS sensor, in externally rated magnetic housing ( + adhesive pad/window fixing )

POWER

Unit power : 1.5W

POE type : Class 1

Alternative power input : 10-40V DC (max current 150mA at 12V)

ETHERNET INTERFACE

Connector type : RJ45

Rate : 10/100Base-T full-duplex with auto-negotiation

Data security : Shared Keys system ( server authentication )

LEDS

Status indicators : Green LED : long pulse: OK short pulse: no GPS lock Amber LED : heartbeat pulse
