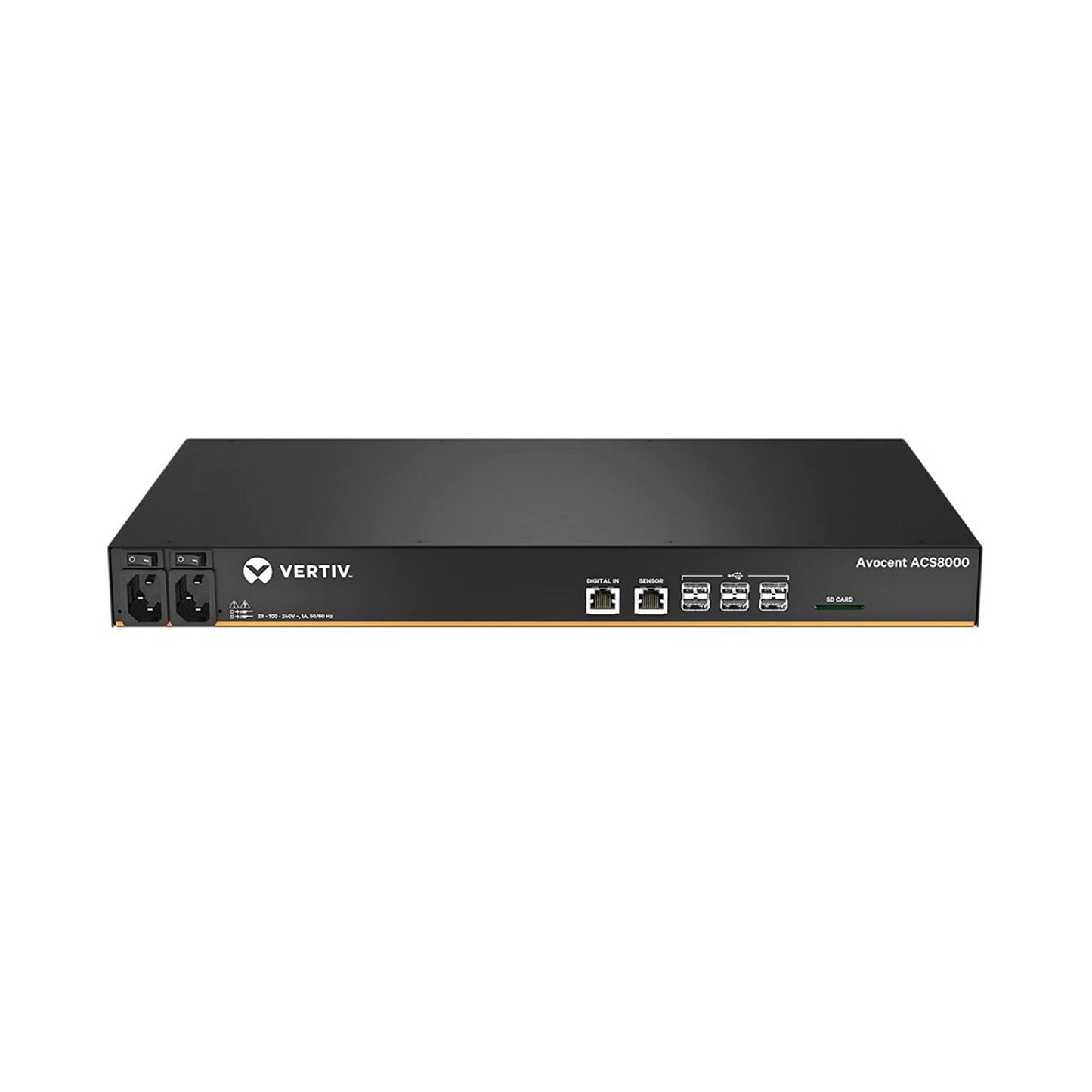

Vertiv ACS8016DAC-404 16-port Console System With Dual AC power supply

Vertiv ACS8016DAC-404 Datasheet

ACS8000 advanced console server series continues the long running success story with a new, ground-up platform of innovation, integrating important new connectivity features such as cellular, gigabit fiber, USB and sensors. IT professionals and network operations center (NOC) personnel can now harness these new capabilities to further enable them to perform secure, remote data center management and out-of- band management of IT assets from anywhere in the world. Featuring a dual-core ARM processor architecture with expanded memory capabilities, the updated Linux operating system and DSView™ management software, provides the Avocent® ACS8000 optimal performance, security, reliability for a complete out-of-band management solution.

• NEW! Cellular connectivity provides both primary WAN interface and secondary failover support
• NEW! - Environmental sensor port gives visibility into onsite conditions
• Secure in-band and out-of-band network remote management
• Fast, automated configuration with Zero Touch Provisioning
• Access and troubleshoot remote locations using automatic network failover to cellular, Ethernet or analog modem
• No need for adaptors with automatic Cyclades™ and Cisco pin-out conversions
• 8 USB ports to support new IT equipment with USB console ports as well as external peripherals

Specifications

CPU : Dual-core ARM Cortex-A9 MPCore with CoreSight

Memory : 1GB DDR3L RAM 16GB eMMC Flash

Interfaces : First 2 ports selectable between RS-232/RS-422/RS-485 8 USB 2.0 Ports on Type A connector 1 full size SD Card slot Environmental sensor port on RJ45 (1-wire) 4 digital-in ports (smoke, leak, pressure and dry contact sensors)

Power : Internal 100–240 VAC, 50/60 Hz Optional –48 VDC power supply Optional dual entry, redundant AC and DC power supplies

Power Usage : Nominal voltage 120VAC  , Maximum 0.29A, 28W

Operating Temp. : 14°F to 140°F (-10°C to 60°C)

Storage Temp : -4° to 158°F (-20° to 70°C)

Humidity : 20% to 80% Non-condensing Relative Humidity

Non-operating Humidity : 5% to 95% Non-condensing Relative Humidity

Dimensions (W x D x H) : 17.25W x 9.5D X 1.75H in (43.82 x 24.13 x 4.45 cm

Weigh : 6.4 - 7.2 lbs
