Veracity

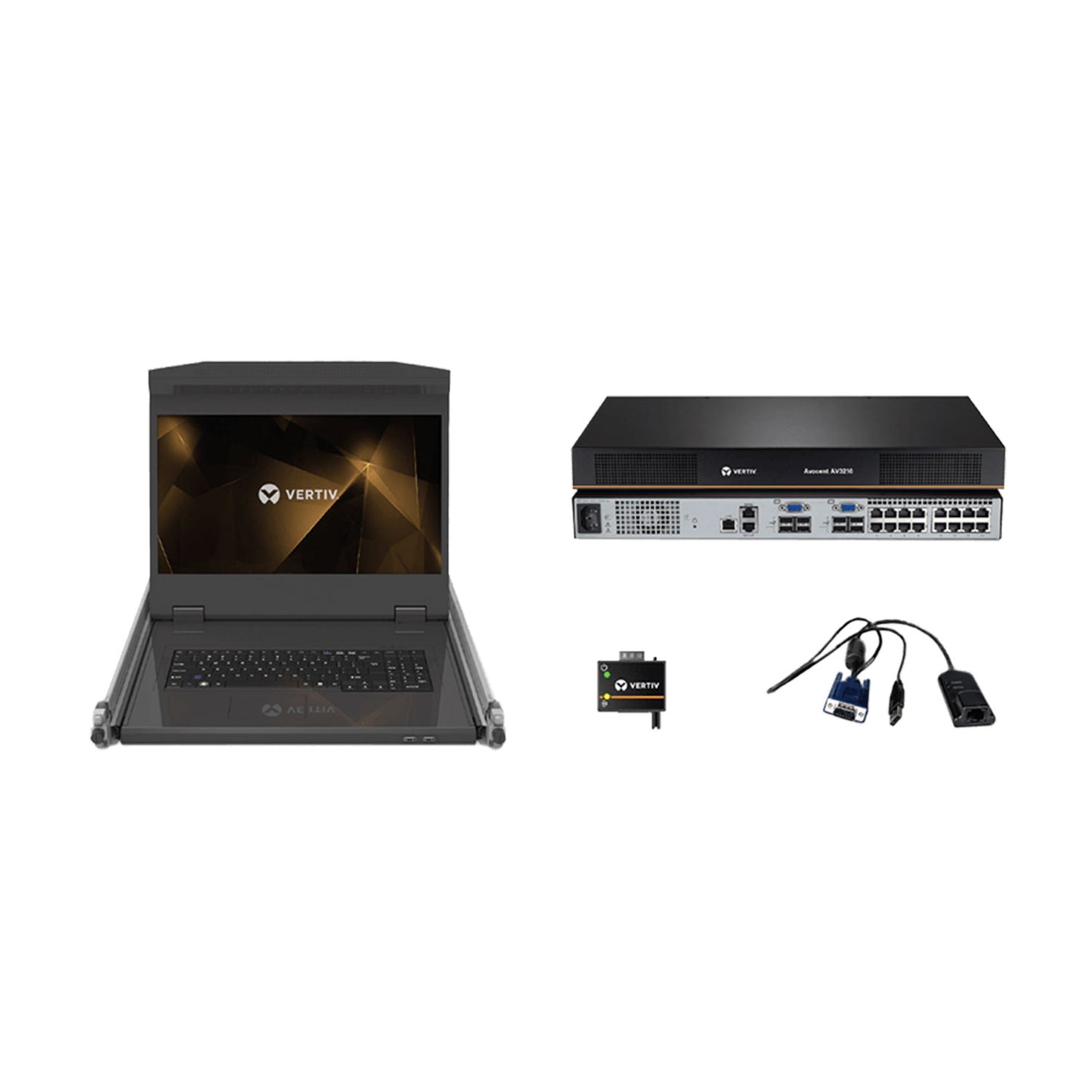

Vertiv CLRA19KMM8A KVM Console 19" 8 Port CLRA Analo

Vertiv CLRA19KMM8A KVM Console 19" 8 Port CLRA Analo

Regular price Rs. 176,606.00
Regular price Rs. 353,212.00 Sale price Rs. 176,606.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Vertiv CLRA19KMM8A Datashee

Vertiv® CLRA Local Rack Access Console family is here to help make your job easier. The new CLRA now comes with an 18.5” LCD panel that support high definition resolution (1920 × 1080) and supports the next-generation rails that allow seamless installation into the racks without any tools. This allows you quick and easy access to multiple servers, making software upgrades, troubleshooting and system monitoring more convenient and less time consuming.

Local Rack Console

Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1920 × 1080 at both full screen and aspect ratio

Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Save space by installing an Avocent KVM (AV3000/ CSV1000 series) in the same 1U space

KVM Compatibility: CLRA Consoles are compatible with all Avocent data center KVM switches

User Interface: On-screen menu has an intuitive OSCAR interface and can be accessed in multiple languages.

Data Center Local Access: Complete entry point to local servers when needed.

Ease of Use : Full desktop style keyboard with number pad, touch pad and two USB 2.0 pass through ports.

Environmentally Responsible: Low power usage during operation and standby

Specifications:

Height (rack units)  : 1U

18.5-Inch LED Monitor

Power : Maximum: 22 Watts / Nominal: 17 Watts / Standby: <1 Watts

Auto-ranging power supply : Input: 110-240 VAC

Power Connection : IEC C-14 to the PDU

Display Type : 18.5” LED LCD Monitor, 16:9 Aspect Ratio

Resolution : MAXIMUM: 1920 × 1080 @60Hz; STANDARD: 1366 × 768 @60Hz; MINIMUM: 800 × 600 @60Hz

Scaling : Full Screen, Aspect, 1:1

Video Input : VGA

Display Active Area : 18.5 in

Pixel Pitch : 300 × 300
