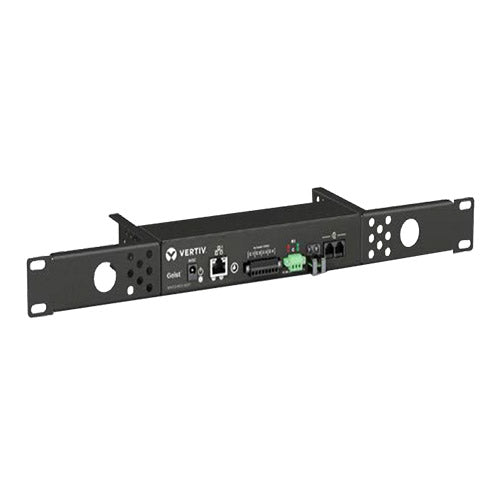

Vertiv Geist Watchdog 100-P NPS Environmental Monitor with on-board temperature, humidity and dew-point sensors

Vertiv Geist Watchdog 100-P NPS Environmental Monitor with on-board temperature, humidity and dew-point sensors

Regular price Rs. 47,000.00
Regular price Rs. 100,737.00 Sale price Rs. 47,000.00
Sale Sold out
Tax included. Shipping calculated at checkout.

Geist Watchdog 100-P NPS Datasheet

Environmental Monitor, on-board temperature, humidity and dew-point sensors, one relay contact, capacity to add 8 additional external sensors (4 RJ12 and 4 Dry Contact/ 0-5V), built-in PoE, no power supply included.

Specifications :

Activity LED :  1

Idle LED : 1

Power Supply Compatible with these Systems Input: AC 100- 240V, 50/60Hz Output: DC 6V, 2A : No Power Supply Included. Must be purchased separately.

Internal Temperature Sensor : -4°F to 185°F / -20°C to 85°C

Measurement Accuracy : +/-0.5°F / ±0.3°C

Network Protocols Supported and Data Access Formats : HTTP, HTTPS (SSL/TLS), SMTP, DHCP, ICMP, TCP/IP, HTML (Desktop), SNMP v1/v2c, XML, CSV, JSON

Remote Sensor RJ Connection Jacks : 2 (Supports up to 4 Sensors)

Analog Ports : 4 Dry Contact / 0-5VDC

Output Relays : 1

Chassis Dimensions (HxWxD) : 1.61in x 8.50in x 2.51in / 41mm x 216mm x 64mm
