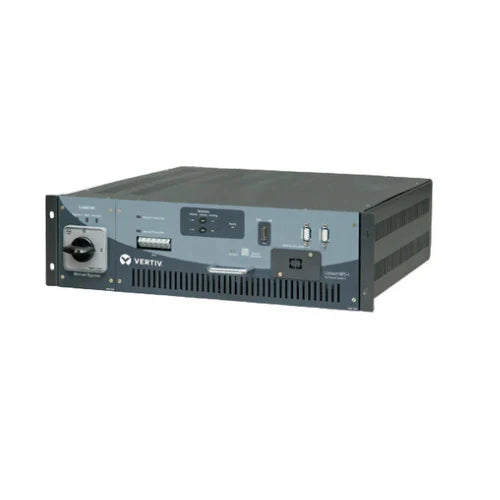

Vertiv Liebert® 200 Amp 4 Pole NPS-II FL4 (000000MS5017)
Vertiv Liebert® 200 Amp 4 Pole NPS-II FL4 (000000MS5017)
Couldn't load pickup availability
The Vertiv Network Power Switch (NPS),(000000MS5017) is a remote power management device designed for networking equipment, data centers, and IT infrastructure. It enables users to control, monitor, and reboot connected devices via a network interface, improving uptime and operational efficiency.
Technical Specifications – Vertiv Liebert® Network Power Switch NPS-II FL4 200 Amp 4 Pole
|
Specification |
Details |
|
Model |
Vertiv Liebert® NPS-II FL4 |
|
Current Rating |
200 Amp |
|
Input / Output |
Three Phase |
|
Switching Configuration |
4 Pole (Phase + Neutral) |
|
Nominal Voltage |
400 / 415V (3 Phase + Neutral) |
|
Voltage Tolerance |
Low Band: -30% to +15%, Medium Band: -25% to +15%, Narrow Band: -15% to +15% |
|
Frequency |
48–52 Hz (Nominal), Wide: 40–70 Hz |
|
Efficiency |
>97% |
|
Transfer Time |
High Sensitivity: <3 ms, Medium: <5 ms, Low: <8 ms |
|
Overload Capacity |
110% for 1 Hour, 150% for 1 Minute, 1000% for 100 ms |
|
Manual Bypass |
Available |
|
Cooling |
Forced Cooling |
|
Operating Temperature |
0°C to 40°C |
|
Relative Humidity |
Up to 95% Non-Condensing |
|
Protection |
IP20 |
|
Communication |
RS485 Modbus (Optional) |
|
Testing Standard |
IEC 62310-3 |
|
Dimensions |
1000 × 600 × 1950 mm |
|
Weight |
Approx. 250 kg |
The above specifications make the 200 Amp FL4 model an ideal solution for medium to large enterprise electrical infrastructures requiring highly reliable automatic source transfer.
